Power Inductors - Leaded INDUCTOR
Power Inductors - Leaded INDUCTOR
| Part | Package / Case | DC Resistance (DCR) [Max] | Inductance | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Type | Inductance Frequency - Test | DC Resistance (DCR) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

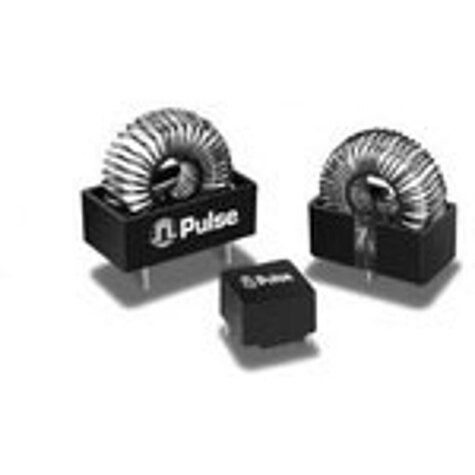

 Pulse Electronics | Radial Vertical (Open) | 1 Ohm | 1.5 mH | 0.62 A | 1.44 in | 0.8 " | 36.57 mm | 20.32 mm | Through Hole | 20 % | 130 °C | -40 C | Unshielded | Toroidal | ||||
 Pulse Electronics | Radial Horizontal - Corner Terminals | 220 µH | 1.5 A | 0.71 in | 0.71 in | 18.03 mm | 18.03 mm | Through Hole | 20 % | 130 °C | -40 C | Unshielded | Toroidal | 20 kHz | 420 mOhm | 11.68 mm | 0.46 in |
