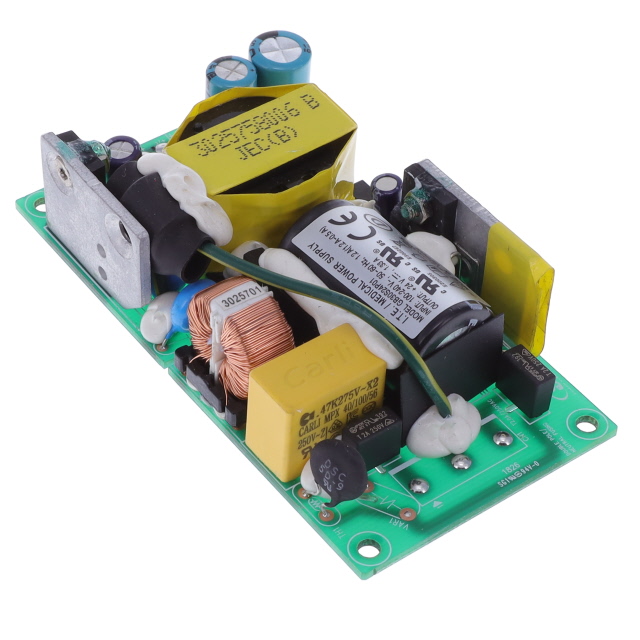

GB30S24 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 24V 32W
| Part | Minimum Load Required | Applications | Current - Output 1 | Efficiency | Mounting Type | Number of Outputs | Approval Agency | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Power (Watts) | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | ITE (Commercial) Medical | 1.33 A | 88 % | Chassis Mount | 1 | CE cURus UL | Universal Input | 70 °C | -25 °C | 24 V | 32 W | Open Frame | 4 " | 101.6 mm | 1.9 " | 25.4 mm | 1 in | 48.3 mm | 4000 V | 100 VAC | 240 VAC | ||
 SL POWER / Advanced Energy | ITE (Commercial) Medical | 1.33 A | 88 % | Chassis Mount | 1 | CE cURus DEMKO | Universal Input | 70 °C | -25 °C | 24 V | 32 W | Open Frame | 3.62 " | 91.9 mm | 1.89 in | 20.9 mm | 0.82 " | 48 mm | 4000 V | 90 VAC | 264 VAC | 60601-1; 62368-1 |
