4622-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]

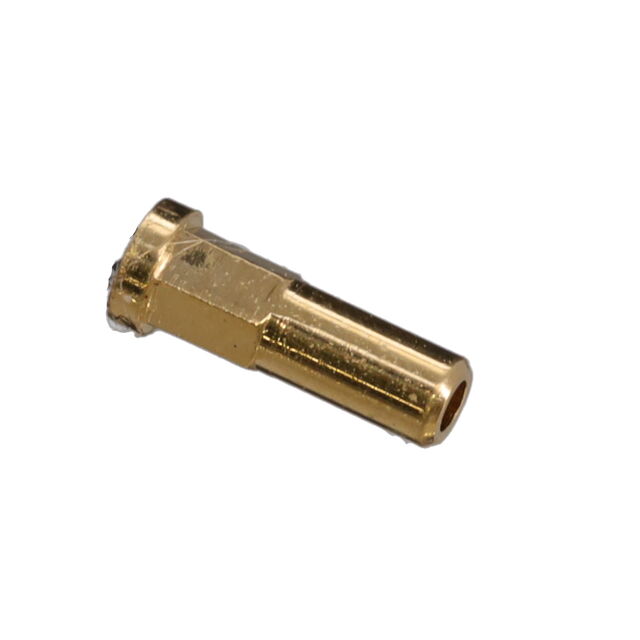

Mill-Max Manufacturing Corp. 4622-0-15-15-30-27-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Hex Press-Fit	0.053 "	1.35 mm	30 Áin	0.76 Ám	0.068 in	1.73 mm	Gold	2.18 mm	0.086 "	4.52 mm	0.178 in
Mill-Max Manufacturing Corp. 4622-0-15-01-30-27-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Hex Press-Fit	0.053 "	1.35 mm	30 Áin	0.76 Ám	0.068 in	1.73 mm	Gold	2.18 mm	0.086 "	4.52 mm	0.178 in
Mill-Max Manufacturing Corp. 4622-0-15-80-30-84-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Hex Press-Fit	0.053 "	1.35 mm	100 µin	2.54 µm	0.068 in	1.73 mm	Tin	2.18 mm	0.086 "	4.52 mm	0.178 in
Mill-Max Manufacturing Corp. 4622-0-15-15-30-14-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Hex Press-Fit	0.053 "	1.35 mm	10 Áin	0.25 Ám	0.068 in	1.73 mm	Gold	2.18 mm	0.086 "	4.52 mm	0.178 in

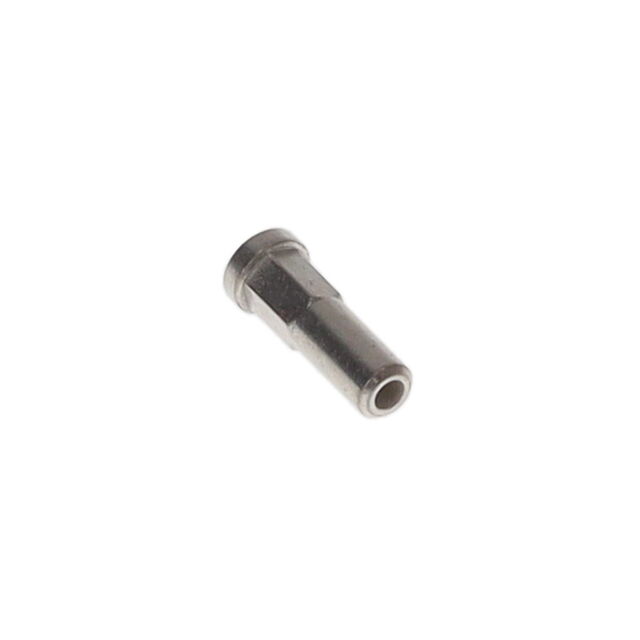

Mill-Max Manufacturing Corp. 4622-0-15-80-30-27-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Hex Press-Fit	0.053 "	1.35 mm	30 Áin	0.76 Ám	0.068 in	1.73 mm	Gold	2.18 mm	0.086 "	4.52 mm	0.178 in
