ATS-02A Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 45.00MM X 45.00MM ALUM

...

Part	Type	Package Cooled	Attachment Method	Material	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Material Finish	Fin Height	Fin Height	Shape	Width	Width	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]	Length	Width [x]	Width [x]	Length	Shape [custom]	Shape [custom]	Length
Advanced Thermal Solutions Inc. ATS-02A-106-C3-R1	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	26.7 °C/W	1.772 in	45 mm	Blue Anodized	0.5 "	12.7 mm	Fins Square	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-02A-155-C1-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	5.34 °C/W			Blue Anodized			Fins Square			20 mm	0.79 in	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02A-180-C2-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	3.32 °C/W	1.378 "		Blue Anodized			Fins Square					1.378 "	35 mm	1.378 in	35 mm	35 mm
Advanced Thermal Solutions Inc. ATS-02A-190-C1-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	3.6 °C/W	1.772 in	45 mm	Blue Anodized	0.984 in	25 mm	Fins Square	1.772 in	45 mm

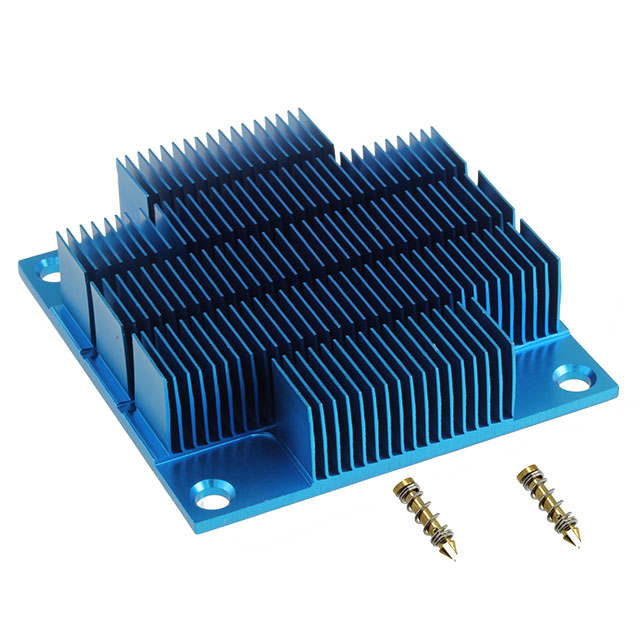

Advanced Thermal Solutions Inc. ATS-02A-108-C3-R1	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	27.12 °C/W	1.969 in	50 mm	Blue Anodized	0.5 "	12.7 mm	Fins Square										50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-02A-190-C3-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	3.7 °C/W	1.772 in	45 mm	Blue Anodized	0.984 in	25 mm	Fins Square	1.772 in	45 mm

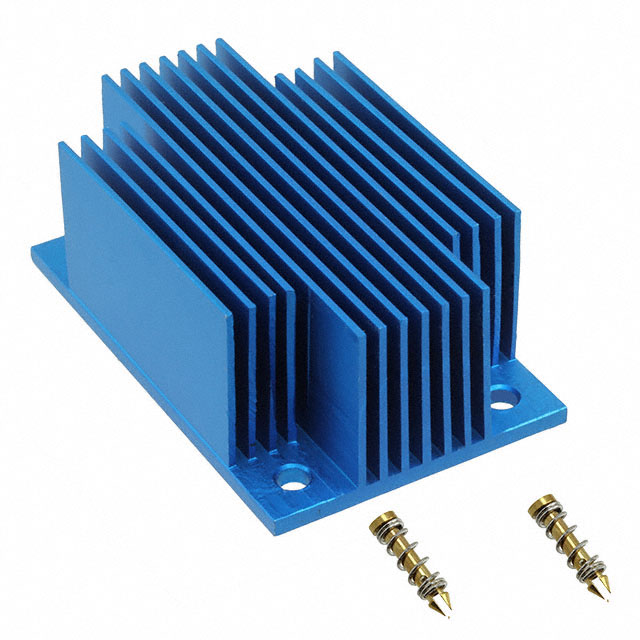

Advanced Thermal Solutions Inc. ATS-02A-34-C3-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	14.4 °C/W			Blue Anodized						22.86 mm	0.9 in					2.28 in	36.83 mm	1.45 in	57.9 mm	Rectangular	Fins
Advanced Thermal Solutions Inc. ATS-02A-80-C2-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	19.03 °C/W			Blue Anodized			Fins Square			15 mm	0.59 in					0.03 m	30 mm	1.181 in				1.181 in
Advanced Thermal Solutions Inc. ATS-02A-168-C2-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	7.01 °C/W	0.984 in		Blue Anodized	0.984 in	25 mm	Fins Square									25 mm	25 mm	0.984 "
Advanced Thermal Solutions Inc. ATS-02A-77-C1-R0	Top Mount	ASIC BGA CPU LGA	Push Pin	Aluminum	9.24 °C/W	0.984 in		Blue Anodized			Fins Square			30 mm	1.181 in					25 mm	25 mm	0.984 "
