1217835 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

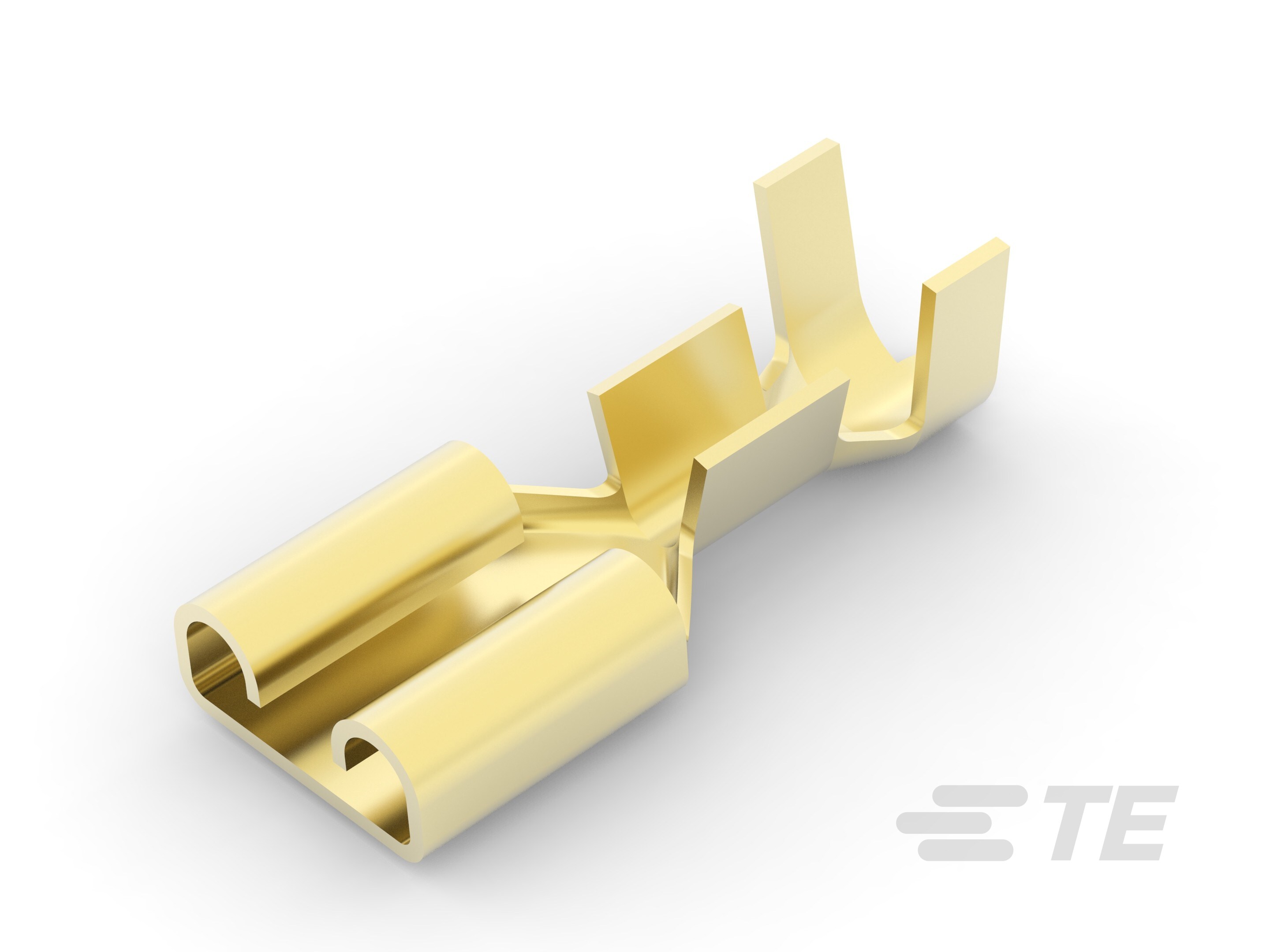

RECP AMVAR 250 FAST 016BR ROHS COMPLIANT: YES
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Mounting Type | Tab Length | Tab Length | Gender | Tab Thickness | Tab Thickness | Termination | Contact Material | Insulation | Terminal Type | Tab Width [x] | Tab Width [x] | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.17 in | 3.05 mm | 4.32 mm | 0.12 " | Free Hanging (In-Line) | 0.28 in | 7.11 mm | Female | 0.81 mm | 0.032 in | Crimp | Brass | Non-Insulated | Standard | 6.35 mm | 0.25 in | 14 AWG | 18 AWG | 17.53 mm | 0.69 in |
