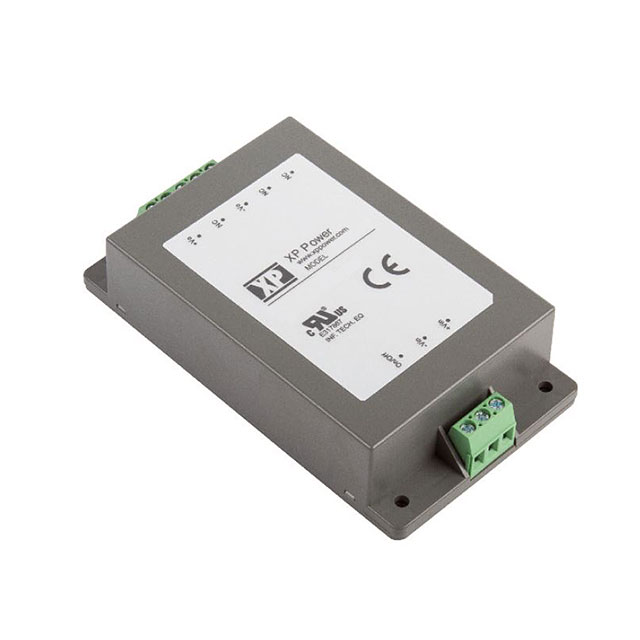

DTE40 Series

Manufacturer: XP Power

Catalog

DC/DC DIN RAIL SUPPLY 48V 40W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Approval Agency	Input Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	Standard Number	Number of Outputs	Mounting Type	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
XP Power DTE4024S48-D	25.6 mm	63.8 mm	1.01 "	4.41 "	2.51 "	112 mm	40 W	48 V	9 V	CB CE cURus	DC	ITE (Commercial)	85 °C	-40 C	89 %	835 mA	36 V	62368-1	1
XP Power DTE4024S48	25.6 mm	63.8 mm	1.01 "	4.41 "	2.51 "	112 mm	40 W	48 V		CB CE cURus		ITE (Commercial)	85 °C	-40 C	89 %	835 mA		62368-1	1	Chassis Mount	Enclosed	36 V	9 V
XP Power DTE4024S12	25.6 mm	63.8 mm	1.01 "	4.41 "	2.51 "	112 mm	40 W	12 V		CB CE cURus		ITE (Commercial)	85 °C	-40 C	90 %	3.33 A		62368-1	1	Chassis Mount	Enclosed	36 V	9 V
XP Power DTE4048S5V1-D	25.6 mm	63.8 mm	1.01 "	4.41 "	2.51 "	112 mm	40 W	5.1 V	18 V	CB CE cURus	DC	ITE (Commercial)	85 °C	-40 C	89 %	8 A	75 V	62368-1	1
XP Power DTE4048S24-D	25.6 mm	63.8 mm	1.01 "	4.41 "	2.51 "	112 mm	40 W	24 V	18 V	CB CE cURus	DC	ITE (Commercial)	85 °C	-40 C	92 %	1.67 A	75 V	62368-1	1
XP Power DTE4048S48	25.6 mm	63.8 mm	1.01 "	4.41 "	2.51 "	112 mm	40 W	48 V		CB CE cURus		ITE (Commercial)	85 °C	-40 C	90 %	835 mA		62368-1	1	Chassis Mount	Enclosed	75 V	18 V
XP Power DTE4024S24	25.6 mm	63.8 mm	1.01 "	4.41 "	2.51 "	112 mm	40 W	24 V		CB CE cURus		ITE (Commercial)	85 °C	-40 C	90 %	1.67 A		62368-1	1	Chassis Mount	Enclosed	36 V	9 V
