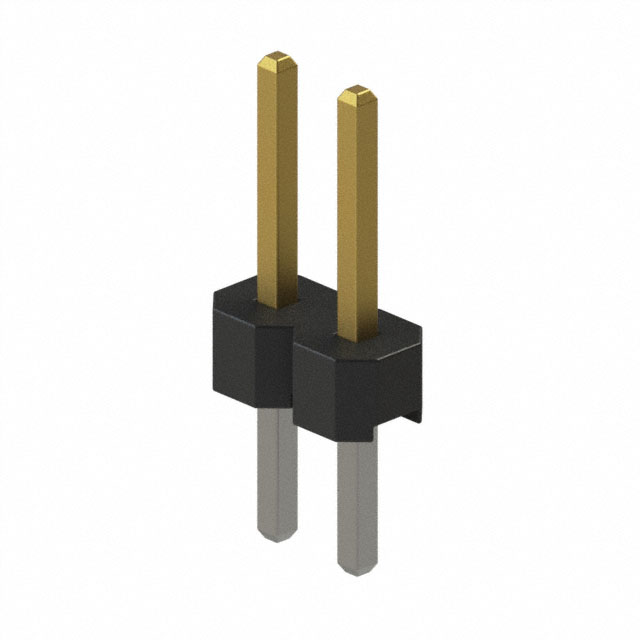

951102 Series

Catalog

70200302969 951102-7622-AR =2/PS/BMT/2MM/1R/RA/PTH/4.0/2.8/AUFL/RC ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Shape	Contact Finish - Mating	Number of Rows	Insulation Color	Insulation Material	Material Flammability Rating	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [custom]	Contact Length - Post	Termination	Connector Type	Contact Type	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Mounting Type	Current Rating (Amps)	Contact Material	Number of Positions Loaded	Overall Contact Length	Overall Contact Length
3M Electronic Specialty 951102-7622-AR	39.4 çin	1 çm	Unshrouded	Square	Gold	1	Black	Thermoplastic	UL94 V-0	2	Push-Pull	0.079 "	2 mm	0.11 in	2.79 mm	Solder	Header Header Cuttable	Male Pin	Flash	-55 C	125 °C	2 mm	0.079 in	0.173 in	4.4 mm	Tin	Right Angle Through Hole	2 A	Copper Alloy	All
3M Electronic Specialty 951102-8622-AR	39.4 çin	1 çm	Unshrouded	Square	Gold	1	Black	Thermoplastic	UL94 V-0	2	Push-Pull	0.079 "	2 mm	0.11 in	2.79 mm	Solder	Header	Male Pin	Flash	-55 C	125 °C	1.52 mm	0.06 in	0.173 in	4.4 mm	Tin	Through Hole		Copper Alloy	All	0.343 in	8.7 mm
3M Electronic Specialty 951102-7722-AR	39.4 çin	1 çm	Unshrouded	Square	Gold	1	Black	Thermoplastic	UL94 V-0	2	Push-Pull	0.079 "	2 mm	0.11 in	2.79 mm	Solder	Header	Male Pin	Flash	-55 C	125 °C	2 mm	0.079 in	0.305 in	7.75 mm	Tin	Right Angle Through Hole		Copper Alloy	All
