C56206 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

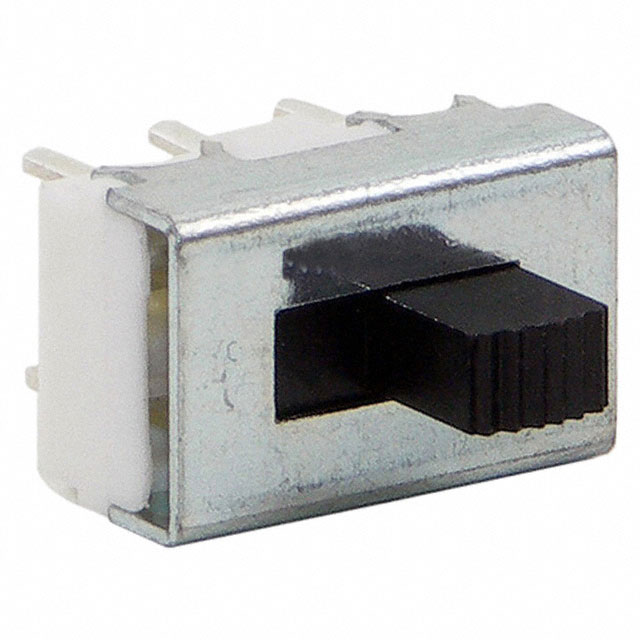

SLIDE SWITCH, DPDT, PANEL, THROUGH HOLE, C56200 SERIES, 500 MA, 125 V
| Part | Switch Travel | Actuator Material | Contact Timing | Contact Finish | Contact Material | Actuator Type | Mounting Type | Voltage Rating - AC | Current Rating (Amps) | Termination Style | Voltage Rating - DC | Actuator Length [x] | Switch Function | Circuit | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 3.61 mm | Thermoplastic | Non-Shorting (BBM) | Silver | Copper Alloy | Standard | Through Hole | 125 V | 500 mA | PC Pin | 125 VDC | 5.08 mm | On-On | DPDT | -20 ░C | 70 °C |
