9031-9023 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

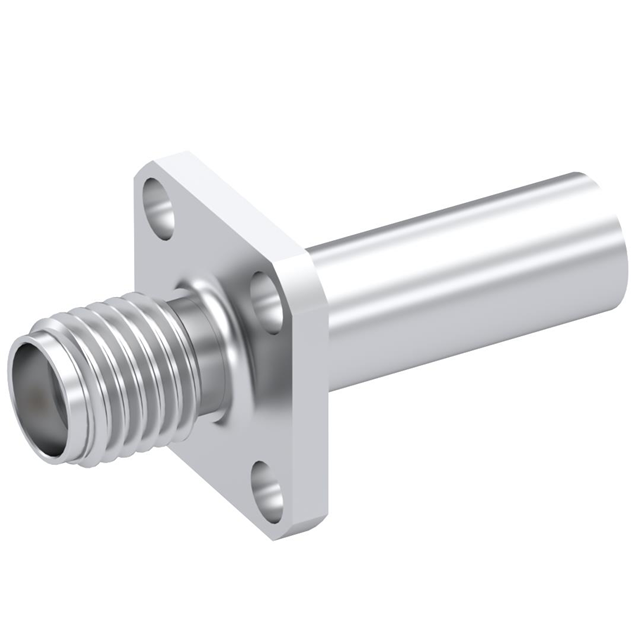

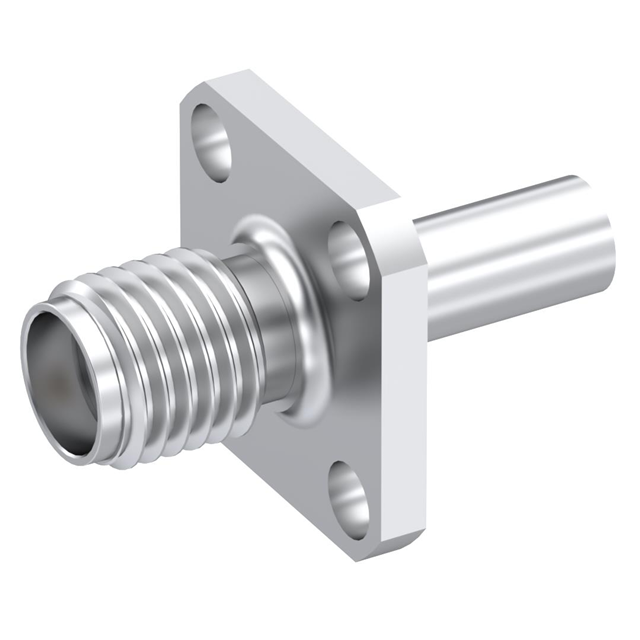

SMA / STRAIGHT JACK FEMALE CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Center Contact Plating | Dielectric Material | Impedance | Shield Termination | Mounting Type | Cable Group | Center Contact Material | Contact Termination | Connector Type | Housing Color | Frequency - Max [Max] | Fastening Type | Connector Style | Number of Ports | Mounting Feature | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Crimp | Panel Mount | RG-316 Double Braid | Beryllium Copper | Crimp | Female Socket Jack | Silver | 12.4 GHz | Threaded | SMA | 1 | Flange | |
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | Crimp | Panel Mount | RG-178 | Beryllium Copper | Crimp | Female Socket Jack | Silver | 12.4 GHz | Threaded | SMA | 1 | Flange | 196 |
