VE-J04 Series

Catalog

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 50W, HYBRID,

Part	Type	Features	Power (Watts)	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Number of Outputs	Applications	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [custom]

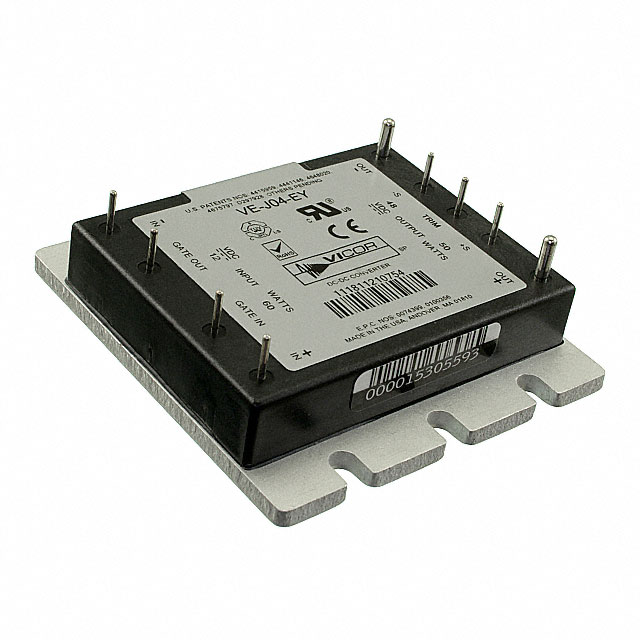

Vicor Corporation VE-J04-EY	Isolated Module	OCP SCP	50 W	Through Hole	20 V	48 V	3000 V	57.9 mm	12.7 mm	0.5 in	2.28 in	2.4 "	70 mm	88 %	1	ITE (Commercial)	1.04 A	Half Brick	10 VDC
Vicor Corporation VE-J04-IY-F1	Isolated Module	OCP SCP	50 W	Through Hole	20 V	48 V	3000 V	57.9 mm	20.1 mm	0.79 in	2.28 in	1.86 "	47.2 mm	90 %	1	ITE (Commercial)	1.04 A	Half Brick	10 VDC	100 °C	-40 °C
Vicor Corporation VE-J04-CX	Isolated Module	OCP SCP	75 W	Through Hole	20 V	48 V	3000 V	57.9 mm	12.7 mm	0.5 in	2.28 in	2.4 "	70 mm	90 %	1	ITE (Commercial)	1.56 A	Half Brick	10 VDC			-25 °C 100 °C
Vicor Corporation VE-J04-CY-B1	Isolated Module	OCP SCP	50 W	Through Hole	20 V	48 V	3000 V	59.9 mm	27.4 mm	1.08 "	2.36 in	2.28 in	57.9 mm	90 %	1	ITE (Commercial)	1.04 A	Half Brick	10 VDC			-25 °C 100 °C
Vicor Corporation VE-J04-EZ-B1	Isolated Module	OCP SCP	25 W	Through Hole	20 V	48 V	3000 V	59.9 mm	27.4 mm	1.08 "	2.36 in	2.28 in	57.9 mm	88 %	1	ITE (Commercial)	521 mA	Half Brick	10 VDC
