WR Series
Manufacturer: TDK Corporation
Beta
⌘K
WIRELESS CHARGING COILS RX COIL 46UH 1.3OHM WIRELESS CHARGING
| Part | DC Resistance (DCR) | Function | Type | Inductance | Tolerance | Type [custom] | Type [custom] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 1.25 Ohm | Receiver | 1 Layer | 46 µH | |||||||||||

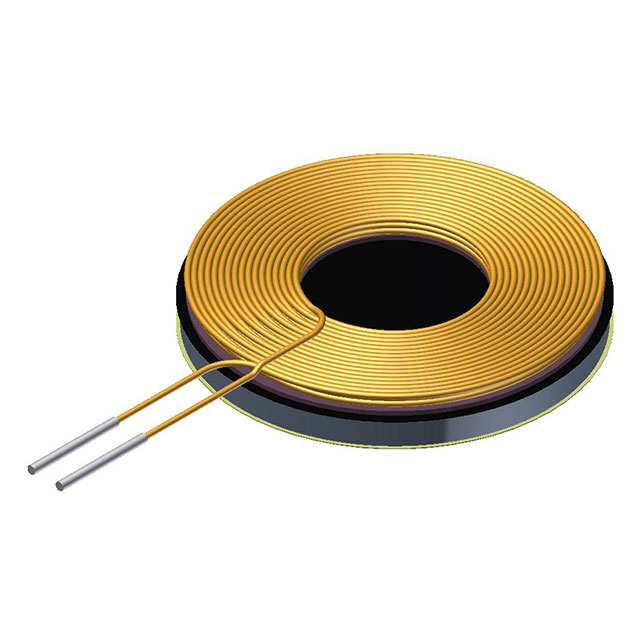

 TDK Corporation | 1.34 Ohm | Receiver | 31.8 µH | 5 % | 3 Layer | 1 Coil | 11 mm | 1.7 mm | 0.43 in | 0.07 in | |||||

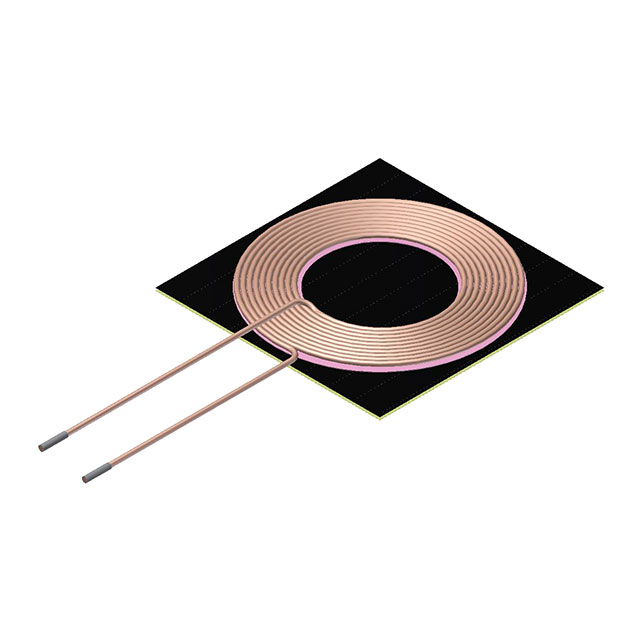

 TDK Corporation | 70 mOhm | Receiver | 1 Layer | 7.3 µH | 3 mm | 0.12 " | 46 mm | 1.81 " | 46 mm | 1.81 in |
