UT-05 Series

Catalog

BUZZER PIEZO 35.56MM TH

Part	Input Type	Mounting Type	Technology	Termination	Voltage Range [Min]	Voltage Range [Max]	Sound Pressure Level (SPL)	Frequency	Port Location	Operating Mode	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Supply [Max]	Current - Supply [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

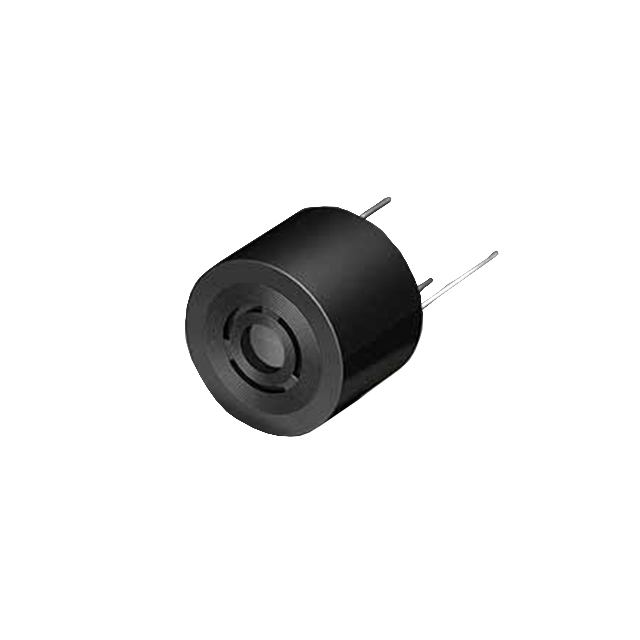

Floyd Bell Inc UT-05-628-P	DC	Through Hole	Piezo	PC Pins	6 VDC	28 V	95 dB	2.1 kHz	Top	Staccato Tone	35.56 mm	1.4 in	50 mA	20 mA	28.07 mm	1.105 in
