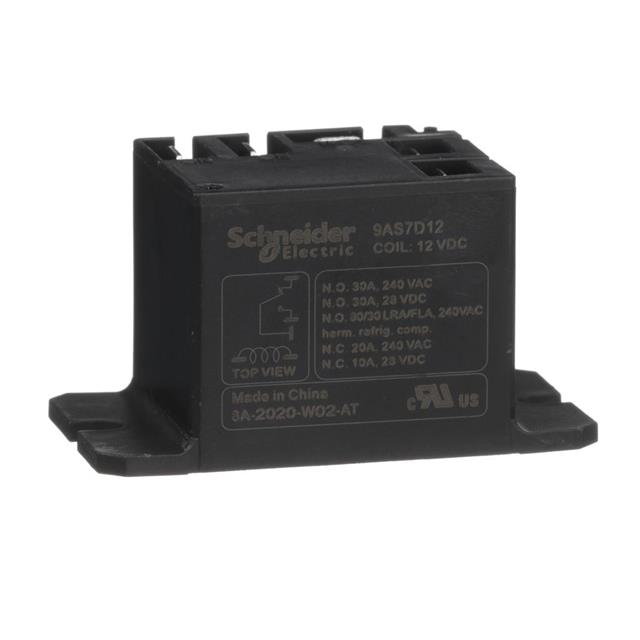

9AS7D Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
ELECTROMECHNICAL POWER RELAYS, S
| Part | Coil Resistance | Termination Style | Termination Style | Operate Time | Relay Type | Must Operate Voltage | Coil Current | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Seal Rating | Switching Voltage | Mounting Type | Must Release Voltage | Contact Rating (Current) | Approval Agency | Coil Type | Contact Material | Load - Max Switching | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 155 Ohms | 0.187 in 0.25 in | Quick Connect | 20 ms | General Purpose | 9.6 VDC | 77.4 mA | 10 ms | 40 °C | -40 C | SPDT (1 Form C) | Sealed - Fully | 28 VDC 277 VAC | Chassis Mount | 1.2 VDC | 30 A | UL | Non Latching | Silver Alloy | 840 W 8310 VA | 12 VDC |
