LX2160 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC MPU QORLQ LX2 2GHZ 1517FCPBGA

Part	RAM Controllers	USB	SATA [custom]	SATA [custom]	Ethernet	Package / Case	Additional Interfaces	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Speed	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Mounting Type	Core Processor	Security Features	Operating Temperature [custom]

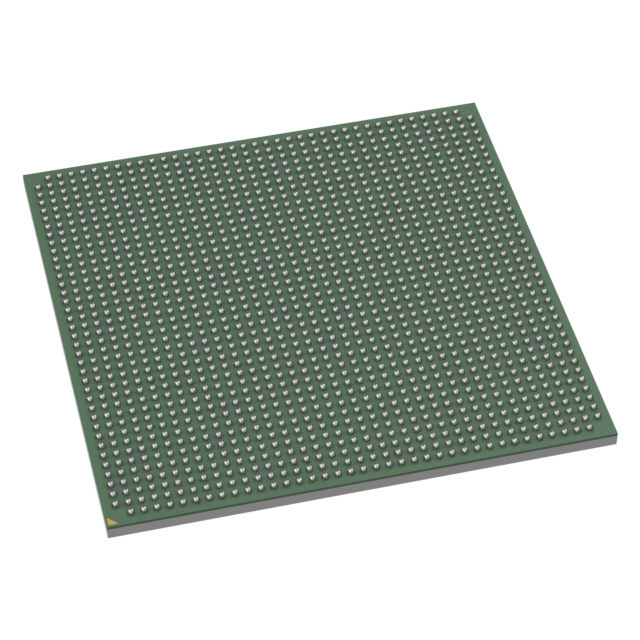

Freescale Semiconductor - NXP LX2160SE72029B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART	0 °C	105 °C	1517-FCPBGA (40x40)	2 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®
Freescale Semiconductor - NXP LX2160XE72029B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART			1517-FCPBGA (40x40)	2 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®	-40 °C 105 °C
Freescale Semiconductor - NXP LX2160XC72232B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART			1517-FCPBGA (40x40)	2.2 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®	-40 °C 105 °C
Freescale Semiconductor - NXP LX2160SN71826B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART	0 °C	105 °C	1517-FCPBGA (40x40)	1.8 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®
Freescale Semiconductor - NXP LX2160SC71826B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART	0 °C	105 °C	1517-FCPBGA (40x40)	1.8 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®
Freescale Semiconductor - NXP LX2160XN72029B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART			1517-FCPBGA (40x40)	2 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®	-40 °C 105 °C
Freescale Semiconductor - NXP LX2160XC72029B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART			1517-FCPBGA (40x40)	2 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®	-40 °C 105 °C
Freescale Semiconductor - NXP LX2160SN72232B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART	0 °C	105 °C	1517-FCPBGA (40x40)	2.2 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®
Freescale Semiconductor - NXP LX2160XN71826B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART			1517-FCPBGA (40x40)	1.8 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®	-40 °C 105 °C
Freescale Semiconductor - NXP LX2160XC71826B	DDR4	2 PHY	4	SATA 3.0	100 Gbps	1517-BBGA FCBGA	CANbus I2C MMC/SD SPI UART			1517-FCPBGA (40x40)	1.8 GHz	64 Bit	16	Surface Mount	ARM® Cortex®-A72	Secure Boot TrustZone®	-40 °C 105 °C
