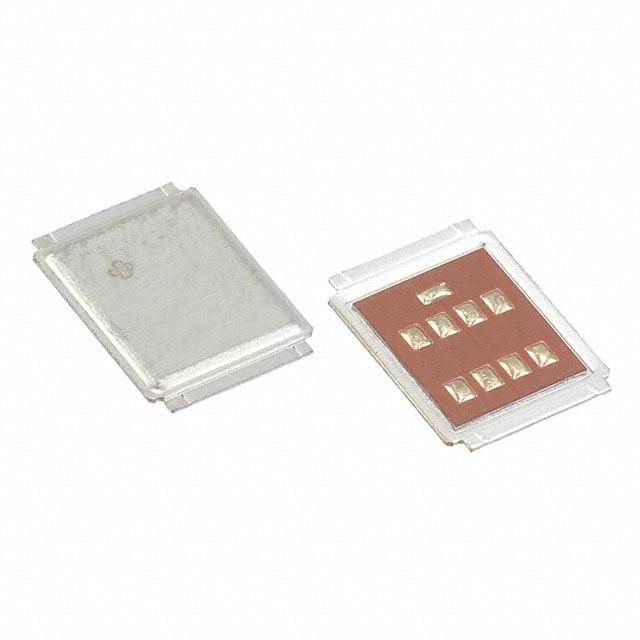

IRF7769 Series
Manufacturer: INFINEON
Beta
⌘K
IR MOSFET™ N-CHANNEL POWER MOSFET ; DIRECTFET™ L PACKAGE; 3.5 MOHM;
| Part | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) | Vgs (Max) | Package / Case | Mounting Type | Rds On (Max) @ Id, Vgs | FET Type | Gate Charge (Qg) (Max) @ Vgs | Technology | Input Capacitance (Ciss) (Max) @ Vds | Vgs(th) (Max) @ Id | Operating Temperature [Max] | Operating Temperature [Min] | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 10 V | 3.3 W 125 W | 20 V | DirectFET™ Isometric L8 | Surface Mount | 3.5 mOhm | N-Channel | 300 nC | MOSFET (Metal Oxide) | 11560 pF | 4 V | 175 °C | -55 °C | 20 A 124 A | DirectFET™ Isometric L8 | 100 V |
