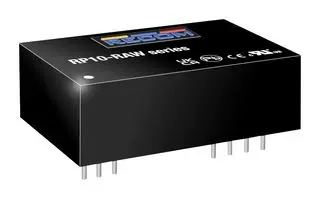

RP10-RAW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 36-160VIN 3.3VOUT 2500MA

Part	Voltage - Isolation	Efficiency	Type	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Number of Outputs	Standard Number	Power (Watts)	Voltage - Input (Min) [Min]	Package / Case	Features	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Max) [Max]
Recom Power RP10-1103.3SRAW	3000 V	83 %	Isolated Module	CE cURus UKCA	0.42 "	0.8 "	10.7 mm	1.25 in	31.8 mm	20.3 mm	3.3 V	1	60601-1	10 W	36 V	24-DIP Module 10 Leads	Adjustable Output	Through Hole	2.5 A	105 C	-40 °C	Medical	160 V
Recom Power RP10-11024SRAW	3000 V	87.5 %	Isolated Module	CE cURus UKCA	0.42 "	0.8 "	10.7 mm	1.25 in	31.8 mm	20.3 mm	24 V	1	60601-1	10 W	36 V	24-DIP Module 10 Leads	Adjustable Output	Through Hole	416 mA	105 C	-40 °C	Medical	160 V
