1546018 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

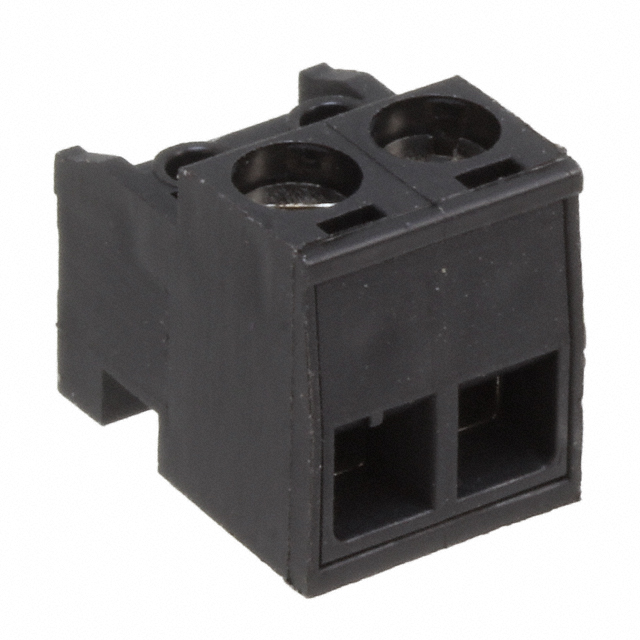

(1546018-2) 2 POS TERMI-BLOK PLUG 90 &180

Part	Type	Contact Material	Positions Per Level	Voltage - UL	Number of Levels	Current - UL	Material Flammability Rating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Color	Screw Size	Torque - Screw	Torque - Screw	Features	Mounting Type	Termination Style	Wire Strip Length [Max]	Wire Strip Length [Min]	Plug Wire Entry	Contact Mating Finish	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity Raychem Cable Protection 1546018-2	Plug for Unshrouded Header	Phosphor Bronze	2	300 V	1	12 A	UL94 V-0	11.5 mm	0.453 in	-40 °C	110 °C	5 mm	0.197 in	Black	M3	6 Lb-In	0.68 Nm	Interlocking (Side)	Free Hanging (In-Line)	Screw - Rising Cage Clamp	6 mm	4 mm	90 °	Tin	0.05 mm²	2 mm²	14 AWG	30 AWG	2

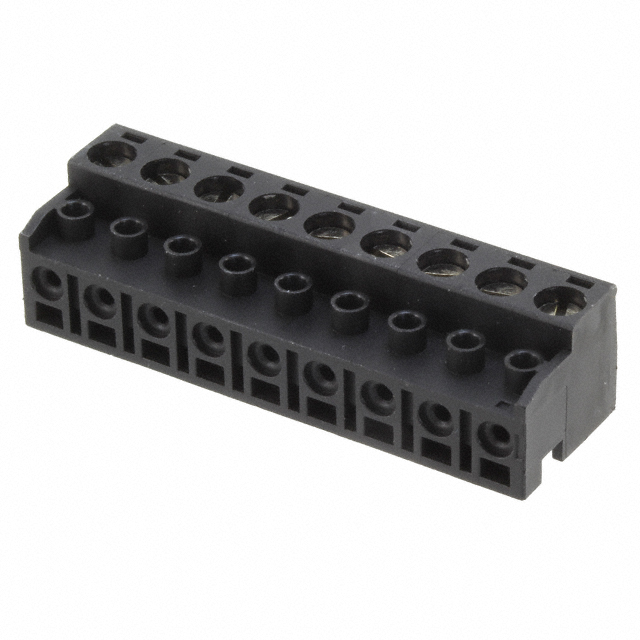

TE Connectivity Raychem Cable Protection 1546018-9	Plug for Unshrouded Header	Phosphor Bronze	9	300 V	1	12 A	UL94 V-0	11.5 mm	0.453 in	-40 °C	110 °C	5 mm	0.197 in	Black	M3	6 Lb-In	0.68 Nm	Interlocking (Side)	Free Hanging (In-Line)	Screw - Rising Cage Clamp	6 mm	4 mm	90 °	Tin			14 AWG	30 AWG	9	2 mm˛	0.05 mm˛

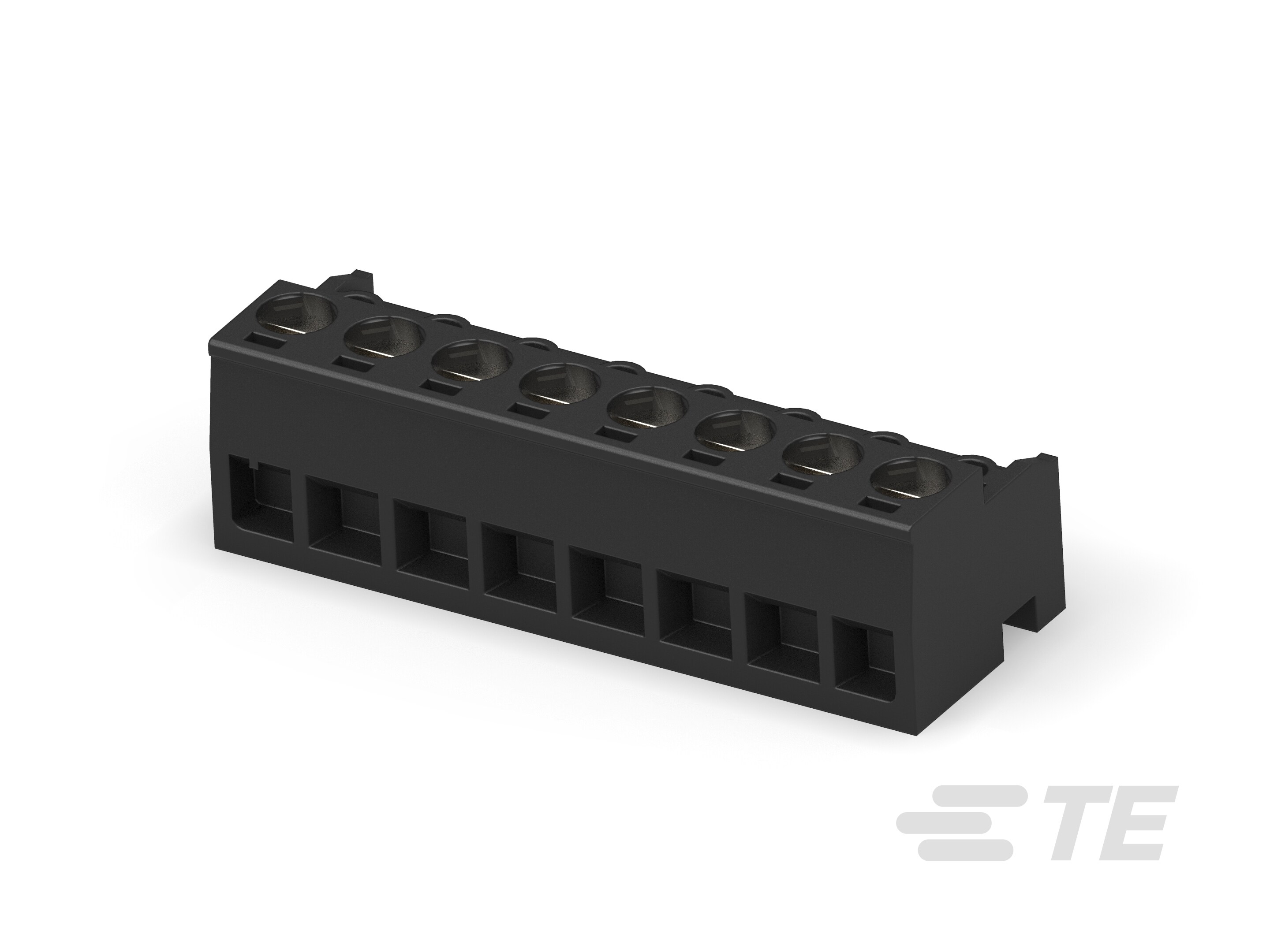

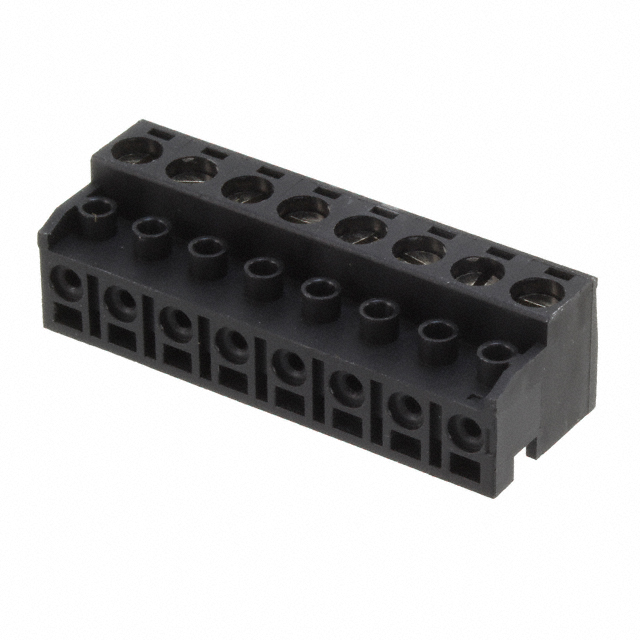

TE Connectivity Raychem Cable Protection 1546018-8	Plug for Unshrouded Header	Phosphor Bronze	8	300 V	1	12 A	UL94 V-0	11.5 mm	0.453 in	-40 °C	110 °C	5 mm	0.197 in	Black	M3	6 Lb-In	0.68 Nm	Interlocking (Side)	Free Hanging (In-Line)	Screw - Rising Cage Clamp	6 mm	4 mm	90 °	Tin	0.05 mm²	2 mm²	14 AWG	30 AWG	8

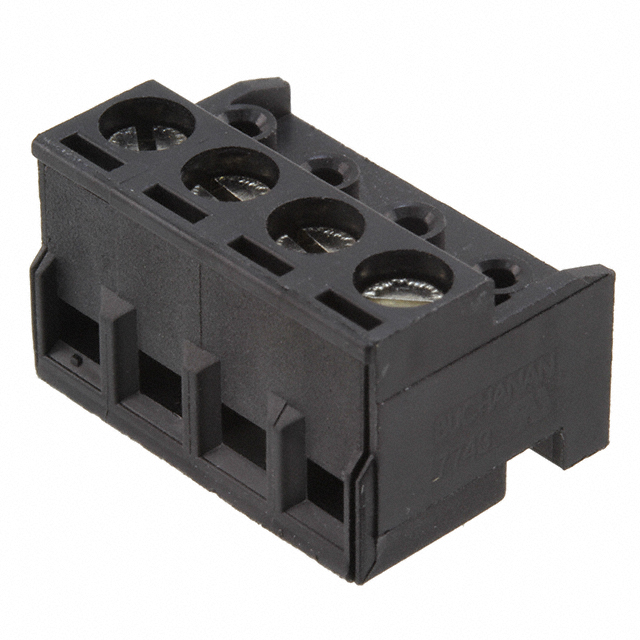

TE Connectivity Raychem Cable Protection 1546018-4	Plug for Unshrouded Header	Phosphor Bronze	4	300 V	1	12 A	UL94 V-0	11.5 mm	0.453 in	-40 °C	110 °C	5 mm	0.197 in	Black	M3	6 Lb-In	0.68 Nm	Interlocking (Side)	Free Hanging (In-Line)	Screw - Rising Cage Clamp	6 mm	4 mm	90 °	Tin			14 AWG	30 AWG	4	2 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 1-1546018-2	Plug for Unshrouded Header	Phosphor Bronze	12	300 V	1	12 A	UL94 V-0	11.5 mm	0.453 in	-40 °C	110 °C	5 mm	0.197 in	Black	M3	6 Lb-In	0.68 Nm	Interlocking (Side)	Free Hanging (In-Line)	Screw - Rising Cage Clamp	6 mm	4 mm	90 °	Tin			14 AWG	30 AWG	12	2 mm˛	0.05 mm˛

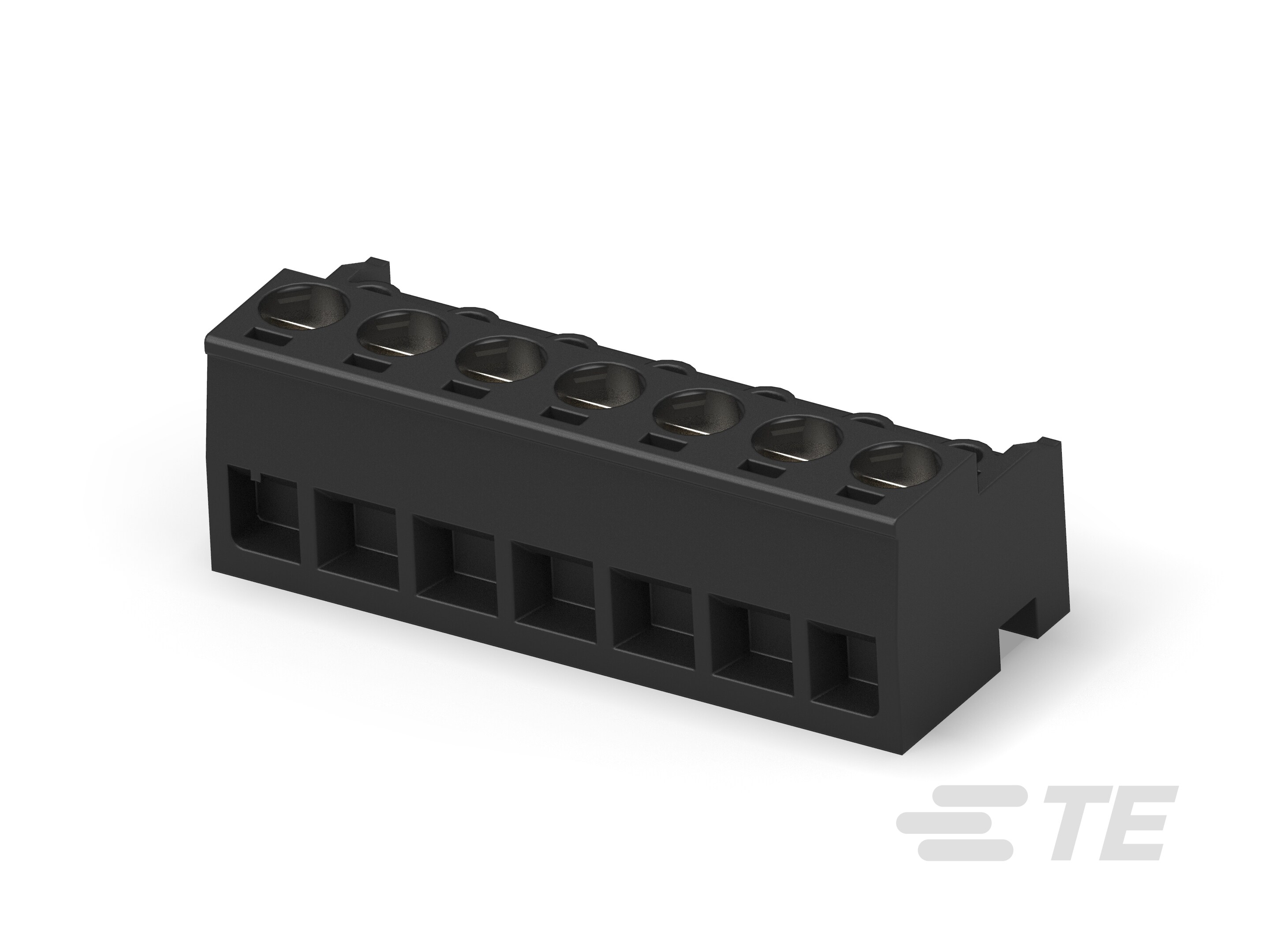

TE Connectivity Raychem Cable Protection 1546018-7	Plug for Unshrouded Header	Phosphor Bronze	7	300 V	1	12 A	UL94 V-0	11.5 mm	0.453 in	-40 °C	110 °C	5 mm	0.197 in	Black	M3	6 Lb-In	0.68 Nm	Interlocking (Side)	Free Hanging (In-Line)	Screw - Rising Cage Clamp	6 mm	4 mm	90 °	Tin	0.05 mm²	2 mm²	14 AWG	30 AWG	7
