GZC01 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 1POS

Part	Shrouding	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Material	Insulation Color	Style	Contact Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Shape	Connector Type	Mounting Type	Termination	Number of Positions	Insulation Height	Insulation Height	Current Rating (Amps)	Fastening Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post

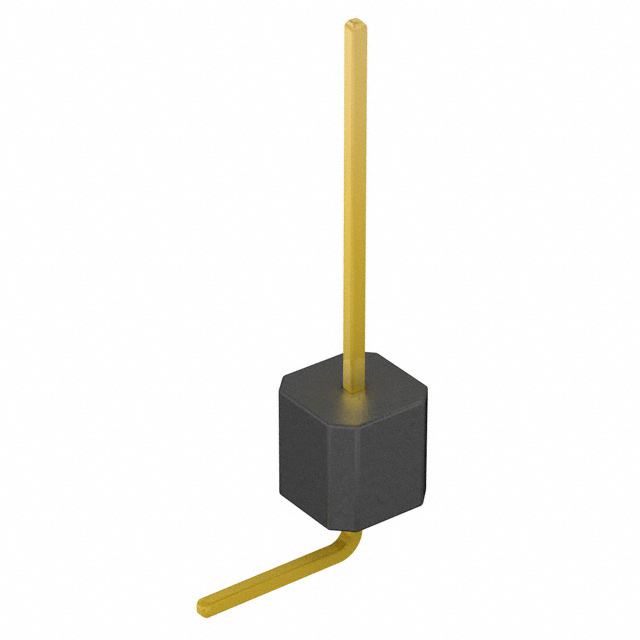

Sullins Connector Solutions GZC01SABN-M30	Unshrouded	All	0.25 µm	10 µin	600 V	Tin-Lead	Gold	-65 ░C	125 °C	UL94 V-0	Nylon 9T Polyamide (PA9T)	Black	Board to Board Cable	Male Pin	1	0.23 in	5.84 mm	Square	Header	Surface Mount	Solder	1	0.1 in	2.54 mm	3 A	Push-Pull	Phosphor Bronze	2.54 µm	100 µin

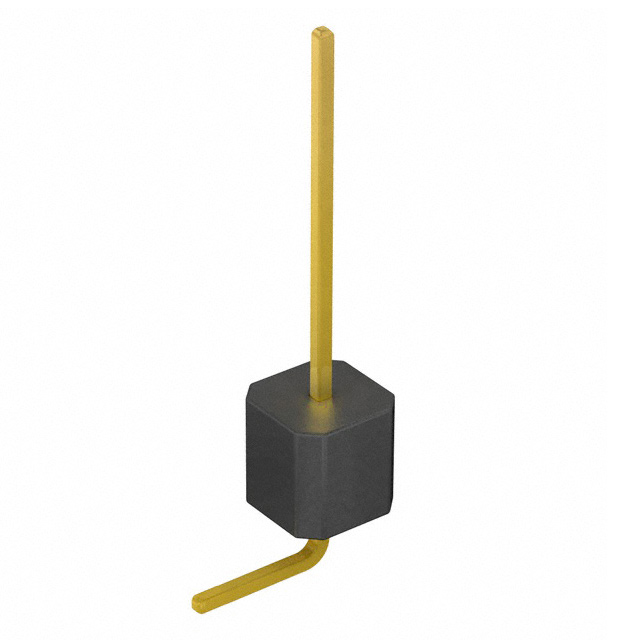

Sullins Connector Solutions GZC01SFBN-M30	Unshrouded	All	0.25 µm	10 µin	600 V	Tin-Lead	Gold	-65 ░C	125 °C	UL94 V-0	Nylon 9T Polyamide (PA9T)	Black	Board to Board Cable	Male Pin	1	0.318 in	8.08 mm	Square	Header	Surface Mount	Solder	1	0.1 in	2.54 mm	3 A	Push-Pull	Phosphor Bronze	2.54 µm	100 µin
Sullins Connector Solutions GZC01SGSN-M89	Unshrouded	All	0.25 µm	10 µin	600 V	Tin-Lead	Gold	-65 ░C	125 °C	UL94 V-0	Nylon 9T Polyamide (PA9T)	Black	Board to Board Cable	Male Pin	1	0.318 in	8.08 mm	Square	Header	Right Angle Surface Mount	Solder	1	0.14 in	3.56 mm	3 A	Push-Pull	Phosphor Bronze	2.54 µm	100 µin
Sullins Connector Solutions GZC01SBSN-M89	Unshrouded	All	0.25 µm	10 µin	600 V	Tin-Lead	Gold	-65 ░C	125 °C	UL94 V-0	Nylon 9T Polyamide (PA9T)	Black	Board to Board Cable	Male Pin	1	0.23 in	5.84 mm	Square	Header	Right Angle Surface Mount	Solder	1	0.14 in	3.56 mm	3 A	Push-Pull	Phosphor Bronze	2.54 µm	100 µin
