TBPMANN Series

Catalog

SENSOR 5PSIG 0.11" .025V 4SMT

Part	Mounting Type	Operating Pressure	Operating Pressure	Features	Supplier Device Package	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Output Type	Applications	Package / Case	Port Style	Pressure Type	Output [Max]	Maximum Pressure [Max]	Maximum Pressure

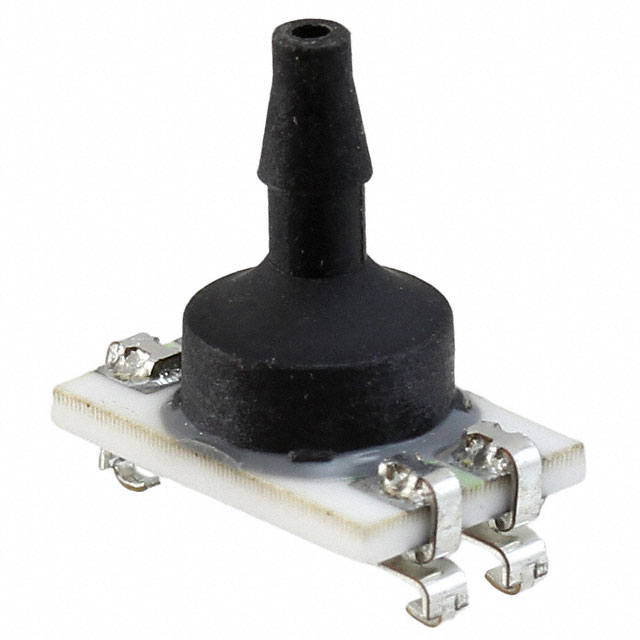

Honeywell Sensing and Productivity Solutions TBPMANN005PGUCV	Surface Mount	5 PSI	34.47 kPa	Temperature Compensated	4-SMT	Male Tube	2.74 mm	0.11 in	125 °C	-40 C	0.15 %	206.84 kPa	30 PSI	12 V	1.5 V	SMD (SMT) Tab	Wheatstone Bridge	Board Mount	4-SMD J-Lead Top Port	Barbed	Vented Gauge	25 mV
Honeywell Sensing and Productivity Solutions TBPMANN400MGUCV	Surface Mount	5.8 PSI	40 kPa	Temperature Compensated	4-SMT	Male Tube	2.54 mm	0.08 "	125 °C	-40 C	0.15 %	200000 kPa		12 V	1.5 V	SMD (SMT) Tab	Wheatstone Bridge	Board Mount	4-SMD J-Lead Top Port	Barbed	Vented Gauge	29 mV	29007.55 PSI

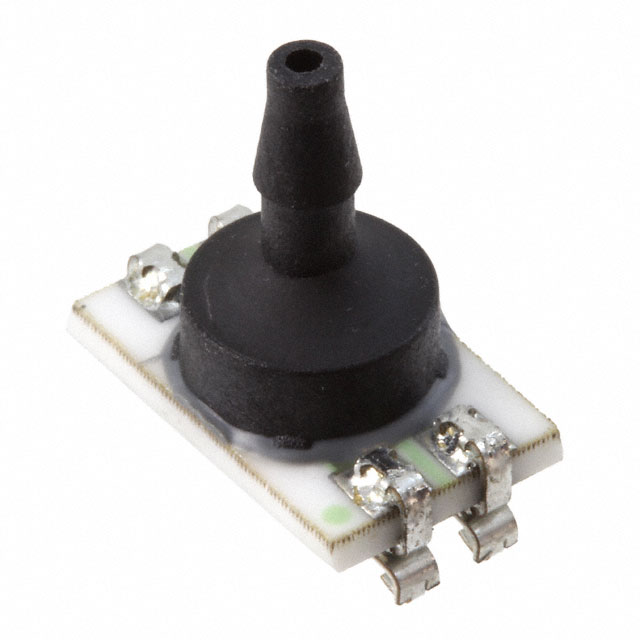

Honeywell Sensing and Productivity Solutions TBPMANN150PGUCV	Surface Mount	150 PSI	1034.21 kPa	Temperature Compensated	4-SMT	Male Tube	2.74 mm	0.11 in	125 °C	-40 C	0.15 %		245 PSI	12 V	1.5 V	SMD (SMT) Tab	Wheatstone Bridge	Board Mount	4-SMD J-Lead Top Port	Barbed	Vented Gauge	45.75 mV		1689.22 kPa
