A1BXH Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE - ASR24H/AE24G/X

Part	Number of Positions	Shielding	Cable Termination	Features	Pitch - Connector	Pitch - Connector	Connector Type	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Rows [custom]	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions [custom]

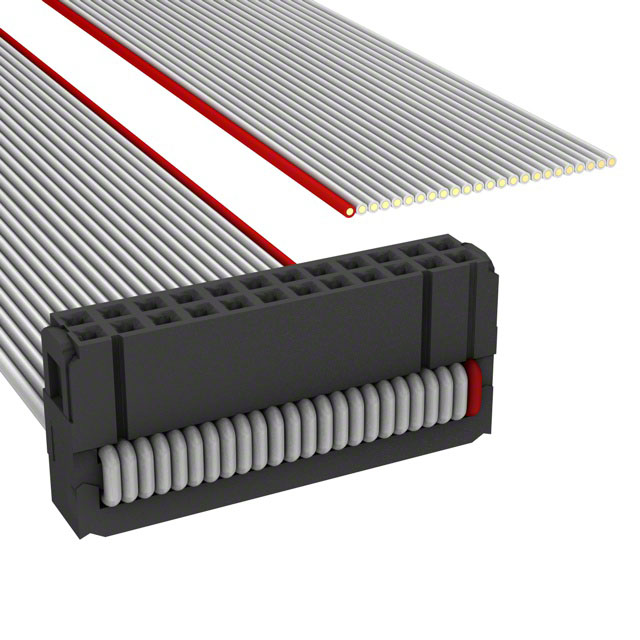

TE Connectivity AMP Connectors A1BXH-2436G	24	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin
TE Connectivity AMP Connectors A1BXH-5036G	50	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin
TE Connectivity AMP Connectors A1BXH-2436M	24	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin	Multiple Ribbon
TE Connectivity AMP Connectors A1BXH-1036G	10	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin

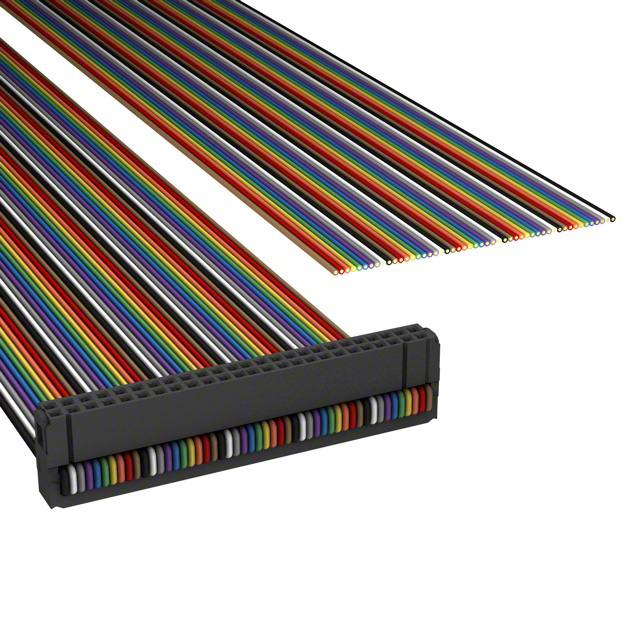

TE Connectivity AMP Connectors A1BXH-5036M	50	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin	Multiple Ribbon
TE Connectivity AMP Connectors A1BXH-1636M	16	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin	Multiple Ribbon
TE Connectivity AMP Connectors A1BXH-3436G		Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin		34

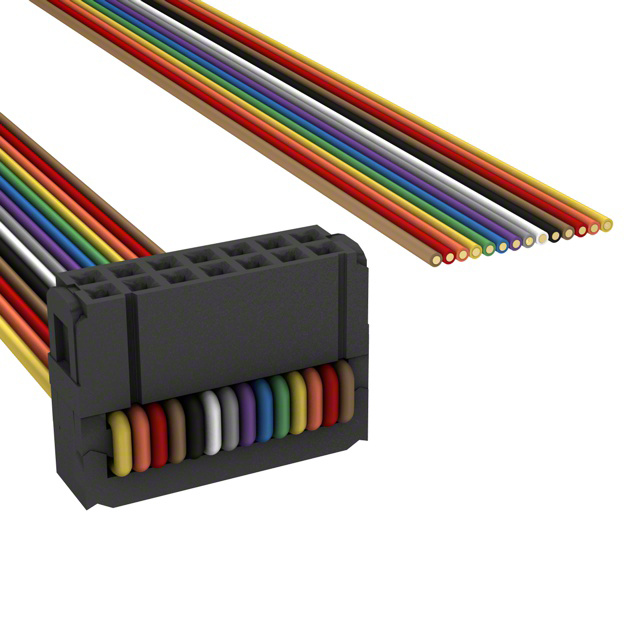

TE Connectivity AMP Connectors A1BXH-1436M	14	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin	Multiple Ribbon
TE Connectivity AMP Connectors A1BXH-2636G	26	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin
TE Connectivity AMP Connectors A1BXH-1636G	16	Unshielded	IDC	Strain Relief	0.1 in	2.54 mm	Socket to Cable	0.05 in	1.27 mm	Gold	2	91.44 cm	3 ft	0.38 µm	15 µin
