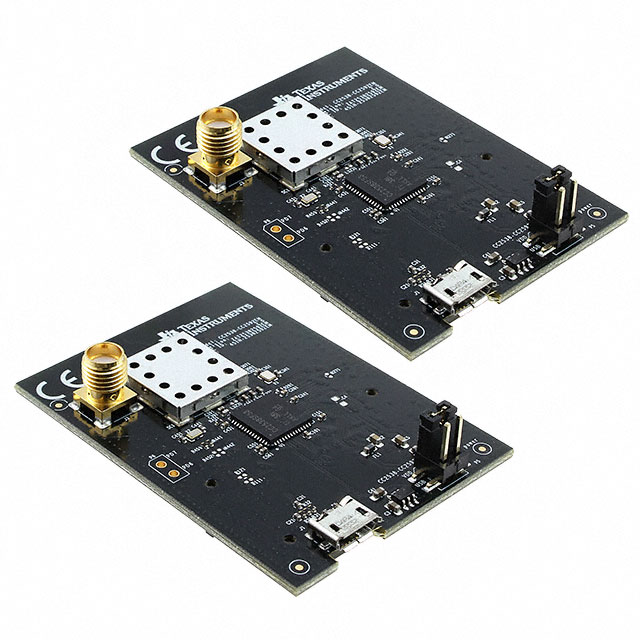

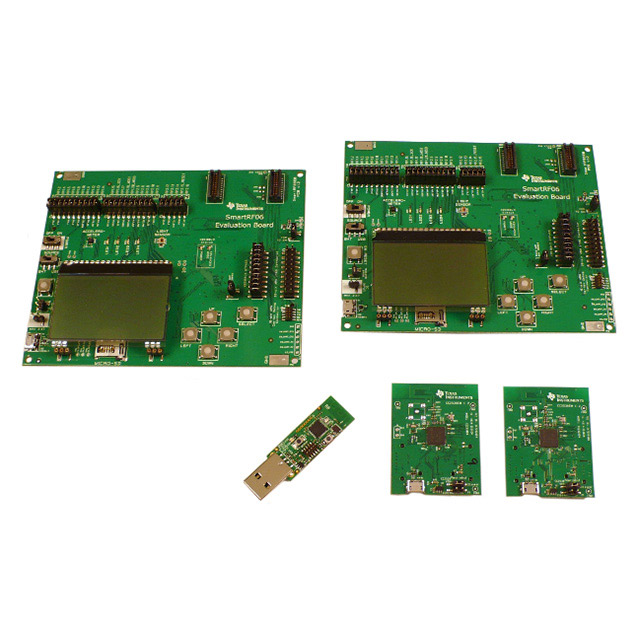

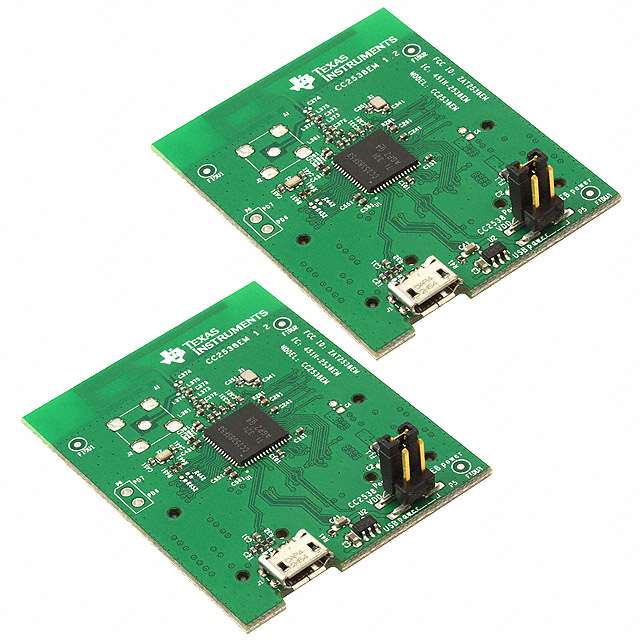

CC2538 Series
32-bit Arm Cortex-M3 Zigbee, 6LoWPAN, and IEEE 802.15.4 wireless MCU with 512kB Flash and 32kB RAM
Manufacturer: Texas Instruments
Catalog
32-bit Arm Cortex-M3 Zigbee, 6LoWPAN, and IEEE 802.15.4 wireless MCU with 512kB Flash and 32kB RAM
Key Features
• MicrocontrollerPowerful ARM®Cortex®-M3 With Code PrefetchUp to 32-MHz Clock Speed512KB, 256KB or 128KB of In-System-Programmable FlashSupports On-Chip Over-the-Air Upgrade (OTA)Supports Dual ZigBee Application ProfilesUp to 32KB of RAM (16KB With Retention in AllPower Modes)cJTAG and JTAG DebuggingRF2.4-GHz IEEE 802.15.4 Compliant RFTransceiverExcellent Receiver Sensitivity of –97 dBmRobustness to Interference With ACR of 44 dBProgrammable Output Power up to 7 dBmSecurity Hardware AccelerationFuture Proof AES-128/256, SHA2 HardwareEncryption EngineOptional – ECC-128/256, RSA HardwareAcceleration Engine for Secure Key ExchangeRadio Command Strobe Processor and PacketHandling Processor for Low-Level MACFunctionalityLow PowerActive-Mode RX (CPU Idle): 20 mAActive-Mode TX at 0 dBm (CPU Idle): 24 mAPower Mode 1 (4-µs Wake-Up, 32-KB RAMRetention, Full Register Retention): 0.6 mAPower Mode 2 (Sleep Timer Running, 16-KBRAM Retention, Configuration RegisterRetention): 1.3 µAPower Mode 3 (External Interrupts, 16-KBRAM Retention, Configuration RegisterRetention): 0.4 µAWide Supply-Voltage Range (2 V to 3.6 V)PeripheralsµDMA4 × General-Purpose Timers(Each 32-Bit or 2 × 16-Bit)32-Bit 32-kHz Sleep Timer12-Bit ADC With 8 Channels and ConfigurableResolutionBattery Monitor and Temperature SensorUSB 2.0 Full-Speed Device (12 Mbps)2 × SPI2 × UARTI2C32 General-Purpose I/O Pins(28 × 4 mA, 4 × 20 mA)Watchdog TimerLayout8-mm × 8-mm QFN56 PackageRobust Device for Industrial Operation up to125°CFew External ComponentsOnly a Single Crystal Needed for AsynchronousNetworksDevelopment ToolsCC2538 Development KitReference Design Certified Under FCC andETSI RegulationsFull Software Support for Contiki/6LoWPAN,Smart Grid, Lighting, and ZigBee HomeAutomation With Sample Applications andReference Designs AvailableCode Composer Studio™IAR Embedded Workbench®for ARMSmartRF™ StudioSmartRF Flash ProgrammerMicrocontrollerPowerful ARM®Cortex®-M3 With Code PrefetchUp to 32-MHz Clock Speed512KB, 256KB or 128KB of In-System-Programmable FlashSupports On-Chip Over-the-Air Upgrade (OTA)Supports Dual ZigBee Application ProfilesUp to 32KB of RAM (16KB With Retention in AllPower Modes)cJTAG and JTAG DebuggingRF2.4-GHz IEEE 802.15.4 Compliant RFTransceiverExcellent Receiver Sensitivity of –97 dBmRobustness to Interference With ACR of 44 dBProgrammable Output Power up to 7 dBmSecurity Hardware AccelerationFuture Proof AES-128/256, SHA2 HardwareEncryption EngineOptional – ECC-128/256, RSA HardwareAcceleration Engine for Secure Key ExchangeRadio Command Strobe Processor and PacketHandling Processor for Low-Level MACFunctionalityLow PowerActive-Mode RX (CPU Idle): 20 mAActive-Mode TX at 0 dBm (CPU Idle): 24 mAPower Mode 1 (4-µs Wake-Up, 32-KB RAMRetention, Full Register Retention): 0.6 mAPower Mode 2 (Sleep Timer Running, 16-KBRAM Retention, Configuration RegisterRetention): 1.3 µAPower Mode 3 (External Interrupts, 16-KBRAM Retention, Configuration RegisterRetention): 0.4 µAWide Supply-Voltage Range (2 V to 3.6 V)PeripheralsµDMA4 × General-Purpose Timers(Each 32-Bit or 2 × 16-Bit)32-Bit 32-kHz Sleep Timer12-Bit ADC With 8 Channels and ConfigurableResolutionBattery Monitor and Temperature SensorUSB 2.0 Full-Speed Device (12 Mbps)2 × SPI2 × UARTI2C32 General-Purpose I/O Pins(28 × 4 mA, 4 × 20 mA)Watchdog TimerLayout8-mm × 8-mm QFN56 PackageRobust Device for Industrial Operation up to125°CFew External ComponentsOnly a Single Crystal Needed for AsynchronousNetworksDevelopment ToolsCC2538 Development KitReference Design Certified Under FCC andETSI RegulationsFull Software Support for Contiki/6LoWPAN,Smart Grid, Lighting, and ZigBee HomeAutomation With Sample Applications andReference Designs AvailableCode Composer Studio™IAR Embedded Workbench®for ARMSmartRF™ StudioSmartRF Flash Programmer
Description
AI
The CC2538xFnn is the ideal wireless microcontroller System-on-Chip (SoC) for high-performance ZigBee applications. The device combines a powerful ARM Cortex-M3-based MCU system with up to 32KB on-chip RAM and up to 512KB on-chip flash with a robust IEEE 802.15.4 radio. This enables the device to handle complex network stacks with security, demanding applications, and over-the-air download. Thirty-two GPIOs and serial peripherals enable simple connections to the rest of the board. The powerful hardware security accelerators enable quick and efficient authentication and encryption while leaving the CPU free to handle application tasks. The multiple low-power modes with retention enable quick startup from sleep and minimum energy spent to perform periodic tasks. For a smooth development, the CC2538xFnn includes a powerful debugging system and a comprehensive driver library. To reduce the application flash footprint, CC2538xFnn ROM includes a utility function library and a serial boot loader. Combined with the robust and comprehensive Z-Stack software solutions from TI, the CC2538 provides the most capable and proven ZigBee solution in the market.
