PRPN041 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

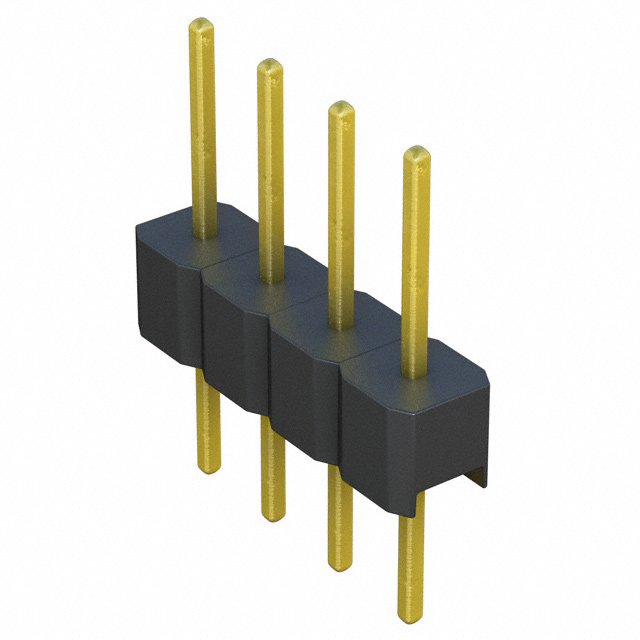

CONN HEADER VERT 4POS 2MM
| Part | Number of Positions | Style | Shrouding | Termination | Contact Finish - Mating | Number of Rows | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Material | Contact Length - Post [custom] | Contact Length - Post | Connector Type | Contact Length - Mating | Contact Length - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Mounting Type | Number of Positions Loaded | Contact Type | Insulation Color | Contact Finish - Post | Contact Shape | Insulation Height [z] | Insulation Height [z] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 4 | Board to Board Cable | Unshrouded | Solder | Gold | 1 | 8.8 mm | 0.346 in | 0.079 " | 2 mm | UL94 V-0 | Brass | 0.11 in | 2.79 mm | Header | 4 mm | 0.157 in | Push-Pull | -40 C | 105 ░C | Flash | Flash | Through Hole | All | Male Pin | Black | Gold | Square | 2 mm | 0.079 in | Polyester |
