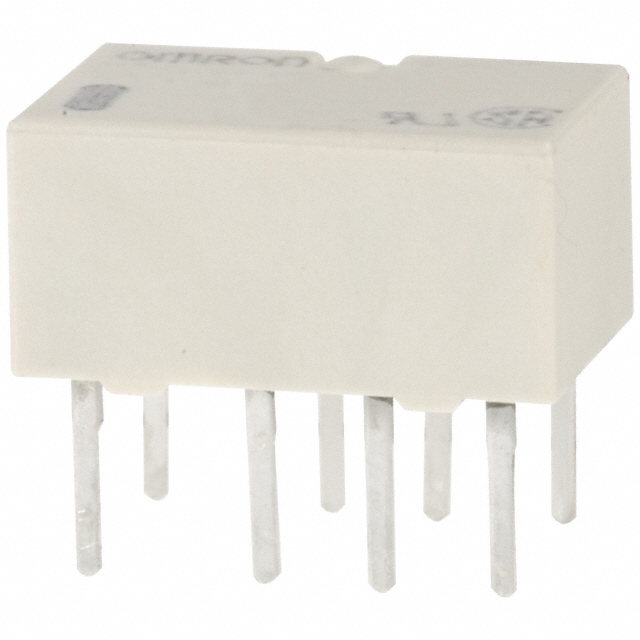

G6K-2P Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY TELECOM DPDT 1A 3V
| Part | Coil Resistance | Contact Form | Load - Max Switching | Must Release Voltage | Release Time | Must Operate Voltage | Contact Rating (Current) | Termination Style | Coil Current | Operate Time | Seal Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Coil Type | Relay Type | Mounting Type | Switching Voltage [Max] | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 91 Ohms | DPDT (2 Form C) | 60 W 125 VA | 0.3 VDC | 3 ms | 2.4 VDC | 1 A | PC Pin | 33 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | |
Omron Electronics Inc-EMC Div | 795 Ohms | DPDT (2 Form C) | 60 W 125 VA | 0.9 VDC | 3 ms | 7.2 VDC | 1 A | PC Pin | 11.3 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 9 VDC |
Omron Electronics Inc-EMC Div | 237 Ohms | DPDT (2 Form C) | 60 W 125 VA | 0.5 VDC | 3 ms | 4 VDC | 1 A | PC Pin | 21.1 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 5 VDC |
Omron Electronics Inc-EMC Div | 1.31 kOhms | DPDT (2 Form C) | 60 W 125 VA | 1.2 VDC | 3 ms | 9.6 VDC | 1 A | PC Pin | 9.1 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 12 VDC |
Omron Electronics Inc-EMC Div | 5.22 kOhms | DPDT (2 Form C) | 60 W 125 VA | 2.4 VDC | 3 ms | 19.2 VDC | 1 A | PC Pin | 4.6 mA | 3 ms | Sealed - Fully | -40 °C | 85 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 24 VDC |
Omron Electronics Inc-EMC Div | 237 Ohms | DPDT (2 Form C) | 60 W 125 VA | 0.5 VDC | 3 ms | 4 VDC | 1 A | PC Pin | 21.1 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 5 VDC |
Omron Electronics Inc-EMC Div | 341 Ohms | DPDT (2 Form C) | 60 W 125 VA | 0.6 VDC | 3 ms | 4.8 VDC | 1 A | PC Pin | 17.6 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | |
Omron Electronics Inc-EMC Div | 1.31 kOhms | DPDT (2 Form C) | 60 W 125 VA | 1.2 VDC | 3 ms | 9.6 VDC | 1 A | PC Pin | 9.1 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 12 VDC |
Omron Electronics Inc-EMC Div | 5.22 kOhms | DPDT (2 Form C) | 60 W 125 VA | 2.4 VDC | 3 ms | 19.2 VDC | 1 A | PC Pin | 4.6 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 24 VDC |
Omron Electronics Inc-EMC Div | 795 Ohms | DPDT (2 Form C) | 60 W 125 VA | 0.9 VDC | 3 ms | 7.2 VDC | 1 A | PC Pin | 11.3 mA | 3 ms | Sealed - Fully | -40 °C | 70 °C | Gold (Au) Silver (Ag) | Non Latching | Telecom | Through Hole | 60 VDC 125 VAC | 9 VDC |
