OQ16 Series

Catalog

TERM BLOCK HDR 16POS VERT 2.5MM

Part	Mounting Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Type	Housing Material	Termination Style	Number of Levels	Number of Positions	Contact Tail Length	Contact Tail Length	Voltage - UL	Positions Per Level	Header Orientation	Current - UL	Insulation Height	Insulation Height	Contact Mating Finish	Features
Amphenol Anytek OQ16B1800000G	Through Hole	UL94 V-0	0.098 in	2.5 mm	-40 °C	115 °C	Gray	Copper	Header Male Pins Shrouded (4 Side)	Thermoplastic	Solder	1	16	3.5 mm	0.138 in	150 V	16	Vertical	4 A	10.11 mm	0.398 in	Tin
Amphenol Anytek OQ1675000000G	Through Hole	UL94 V-0	0.197 in	5 mm	-40 °C	115 °C	Black	Copper	Header Male Pins Shrouded (4 Side)	Thermoplastic	Solder	1	16	4 mm	0.157 in	300 V	16	Vertical	20 A	12 mm	0.472 in	Tin	Mating Flange
Amphenol Anytek OQ16B1810000G	Through Hole	UL94 V-0	0.098 in	2.5 mm	-40 °C	115 °C	Gray	Copper	Header Male Pins Shrouded (4 Side)	Thermoplastic	Solder	1	16	3.81 mm	0.15 in	150 V	16	90° Right Angle	4 A	8.1 mm	0.319 in	Tin
Amphenol Anytek OQ1601010000G	Through Hole	UL94 V-0	0.3 in	7.62 mm	-40 °C	115 °C	Black	Copper	Header Male Pins Shrouded (4 Side)	Thermoplastic	Solder	1	16	3.5 mm	0.138 in	300 V	16	90° Right Angle	20 A	8.51 mm	0.335 "	Tin

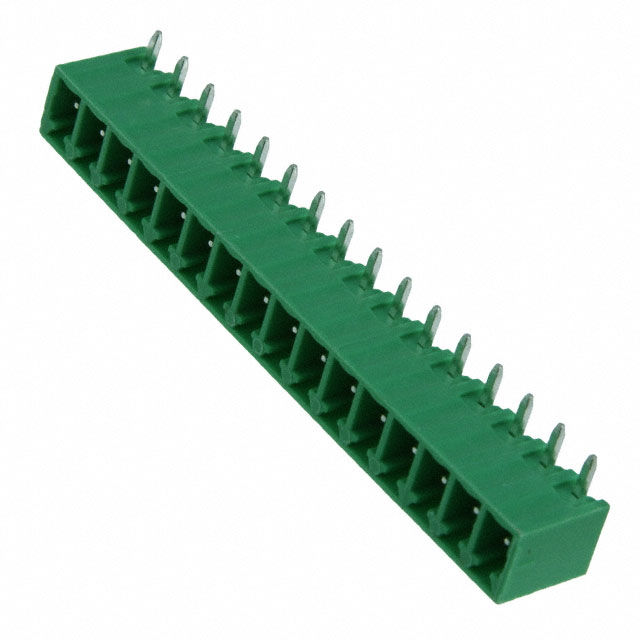

Amphenol Anytek OQ1632510000G	Through Hole	UL94 V-0	0.15 in	3.81 mm	-40 °C	115 °C	Green	Copper Alloy	Header Male Pins Shrouded (4 Side)	Thermoplastic Resin	Solder	1	16	3.5 mm	0.138 in	300 V	16	90° Right Angle	10 A	7.19 mm	0.283 "	Tin
Amphenol Anytek OQ1612010300G	Through Hole	UL94 V-0	0.138 in	3.5 mm	-40 °C	115 °C	Black	Copper	Header Male Pins Shrouded (4 Side)	Thermoplastic	Solder	1	16	3.5 mm	0.138 in	300 V	16	90° Right Angle	10 A	7.19 mm	0.283 "	Tin	Locking Ramp
Amphenol Anytek OQ1615010000G	Through Hole	UL94 V-0	0.138 in	3.5 mm	-40 °C	115 °C	Black	Copper	Header Male Pins Shrouded (4 Side)	Thermoplastic	Solder	1	16	3.5 mm	0.138 in	300 V	16	90° Right Angle	10 A	7.19 mm	0.283 "	Tin	Mating Flange
Amphenol Anytek OQ16A0500000G	Through Hole	UL94 V-0	0.295 in	7.5 mm	-40 °C	115 °C	Green	Copper	Header Male Pins Shrouded (2 Side)	Thermoplastic	Solder	1	16	4 mm	0.157 in	300 V	16	Vertical	20 A	12 mm	0.472 in	Tin
Amphenol Anytek OQ1612810300G	Through Hole	UL94 V-0	0.138 in	3.5 mm	-40 °C	115 °C	Gray	Copper	Header Male Pins Shrouded (4 Side)	Thermoplastic	Solder	1	16	3.5 mm	0.138 in	300 V	16	90° Right Angle	10 A	7.19 mm	0.283 "	Tin	Locking Ramp
Amphenol Anytek OQ1653800000G	Through Hole	UL94 V-0	0.2 in	5.08 mm	-40 °C	115 °C	Gray	Copper	Header Male Pins Shrouded (2 Side)	Thermoplastic	Solder	1	16	4 mm	0.157 in	300 V	16	Vertical	20 A	12 mm	0.472 in	Tin
