TPS780 Series

Catalog

150-MA, NANO-IQ, LOW-DROPOUT VOLTAGE REGULATOR WITH PIN-SELECTABLE, DUAL-LEVEL OUTPUT VOLTAGE

Part	PSRR	Protection Features	Mounting Type	Current - Output	Voltage Dropout (Max)	Control Features	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Regulators	Voltage - Output (Max) [Max]	Output Type	Package / Case	Board Type	Supplied Contents	Contents	Voltage - Output	Channels per IC	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Type	Voltage Dropout (Max)
Texas Instruments TPS780230300DRVT	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA	0.25 V	Enable	5.5 V	800 nA	2.3 V 3 V	5 µA	Positive	125 °C	-40 C	6-WSON (2x2)	1
Texas Instruments TPS78001DRVR	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA		Enable	5.5 V	800 nA	1.22 V	5 µA	Positive	125 °C	-40 C	6-WSON (2x2)	1	5.25 V	Adjustable
Texas Instruments TPS780270200DDCT	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA	0.25 V	Enable	5.5 V	800 nA	2 V 2.7 V	5 µA	Positive	125 °C	-40 C	SOT-23-THIN	1			SOT-23-5 Thin TSOT-23-5

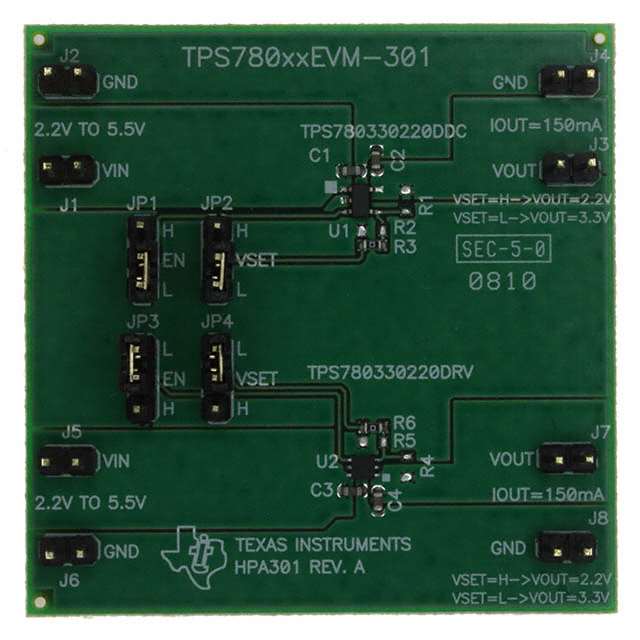

Texas Instruments TPS780XXEVM-301				150 mA															Fully Populated	Board(s)	Board(s)	2.2V 3.3V	1	TPS780330220	5.5 V	2.2 V	Positive Fixed
Texas Instruments TPS780180300DRVT	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA		Enable	5.5 V	800 nA	1.8 V 3 V	5 µA	Positive	125 °C	-40 C	6-WSON (2x2)	1													- 0.25V @ 250mA
Texas Instruments TPS78001DRVT	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA		Enable	5.5 V	800 nA	1.22 V	5 µA	Positive	125 °C	-40 C	6-WSON (2x2)	1	5.25 V	Adjustable
Texas Instruments TPS78001DDCT	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA		Enable	5.5 V	800 nA	1.22 V	5 µA	Positive	125 °C	-40 C	SOT-23-THIN	1	5.25 V	Adjustable	SOT-23-5 Thin TSOT-23-5
Texas Instruments TPS780230300DRVR	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA	0.25 V	Enable	5.5 V	800 nA	2.3 V 3 V	5 µA	Positive	125 °C	-40 C	6-WSON (2x2)	1
Texas Instruments TPS780180300DRVR	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA		Enable	5.5 V	800 nA	1.8 V 3 V	5 µA	Positive	125 °C	-40 C	6-WSON (2x2)	1													- 0.25V @ 250mA
Texas Instruments TPS78001DDCR	15 dB 40 dB	Over Current Over Temperature Reverse Polarity	Surface Mount	150 mA		Enable	5.5 V	800 nA	1.22 V	5 µA	Positive	125 °C	-40 C	SOT-23-THIN	1	5.25 V	Adjustable	SOT-23-5 Thin TSOT-23-5
