725-074 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 74POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Contact Finish	Color	Mounting Type	Number of Positions/Bay/Row	Number of Rows [custom]	Termination	Number of Positions	Contact Type	Gender	Card Thickness [Max]	Card Thickness [Min]	Card Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
EDAC Inc. 725-074-545-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Gold	Black	Through Hole	37	2	Press-Fit Wire Wrap	74	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	30 Áin	0.76 Ám	Copper Alloy	-40 C	105 ░C
EDAC Inc. 725-074-520-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Gold	Black	Through Hole	37	2	Press-Fit	74	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	30 Áin	0.76 Ám	Copper Alloy	-40 C	105 ░C

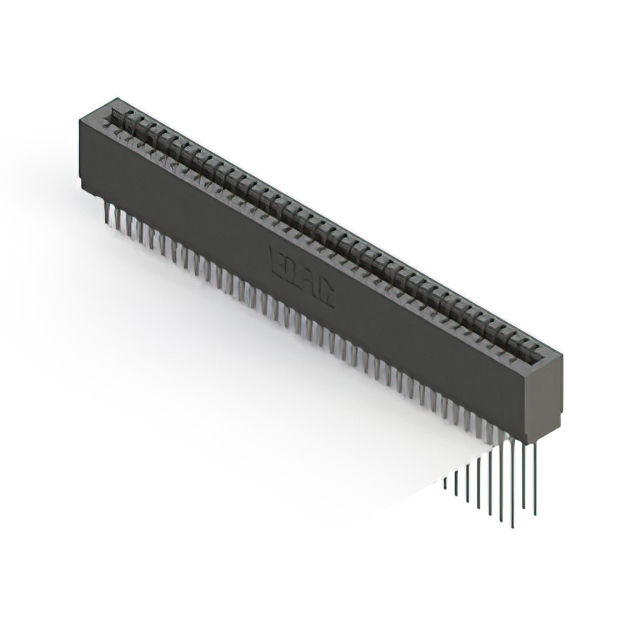

EDAC Inc. 725-074-541-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Gold	Black	Through Hole	37	2	Press-Fit Wire Wrap	74	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	30 Áin	0.76 Ám	Copper Alloy	-40 C	105 ░C
EDAC Inc. 725-074-540-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Gold	Black	Through Hole	37	2	Press-Fit Wire Wrap	74	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	30 Áin	0.76 Ám	Copper Alloy	-40 C	105 ░C
