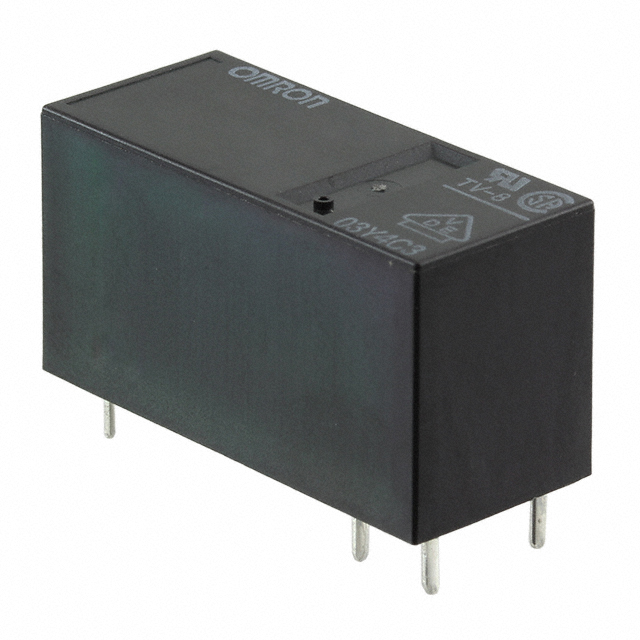

G5RL-U1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 24V
| Part | Termination Style | Seal Rating | Contact Material | Contact Rating (Current) | Relay Type | Mounting Type | Coil Resistance | Load - Max Switching | Release Time | Approval Agency | Coil Voltage | Operate Time | Coil Type | Contact Form | Must Operate Voltage | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | PC Pin | Sealed - Flux Protection | Cadmium Free Silver Alloy | 16 A | General Purpose | Through Hole | 960 Ohms | 384 W 4000 VA | 15 ms | CQC CSA cURus UR VDE | 24 VDC | 15 ms | Latching Single Coil | SPST-NO (1 Form A) | 16.8 VDC | 24 VDC 250 VAC | 85 °C | -40 °C |
