087914 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Rows	Style	Connector Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Termination	Contact Material	Material Flammability Rating	Contact Type	Contact Length - Mating	Contact Length - Mating [x]	Insulation Height	Insulation Height	Shrouding	Number of Positions Loaded	Applications	Contact Shape	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Mating
Molex 0879140806	Push-Pull	2.54 mm	0.1 in	0.107 "	2.71 mm	Tin	2.54 µm	100 µin	0.1 in	2.54 mm	Black	2	Board to Board Cable	Breakaway Header	8	2.54 çm	100 çin	11.1 mm	0.437 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	6.1 mm	0.24 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square
Molex 0879142013	Push-Pull	2.54 mm	0.1 in		2.79 mm	Tin	1.9 Ám	74.8 Áin	0.1 in	2.54 mm	Black	2	Board to Board Cable	Breakaway Header	20	0.25 çm	10 çin	10.92 mm	0.43 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	5.84 mm	0.23 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square	Gold	0.11 in
Molex 0879141216	Push-Pull	2.54 mm	0.1 in		2.79 mm	Tin	2.54 µm	100 µin	0.1 in	2.54 mm	Black	2	Board to Board Cable	Breakaway Header	12	2.54 çm	100 çin	10.92 mm	0.43 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	5.84 mm	0.23 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square		0.11 in
Molex 0879140606
Molex 0879140204	Push-Pull	2.54 mm	0.1 in	0.107 "	2.71 mm	Tin	1.9 Ám	74.8 Áin			Black	2	Board to Board Cable	Breakaway Header	2	0.38 µm	15 µin	11.1 mm	0.437 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	6.1 mm	0.24 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square	Gold

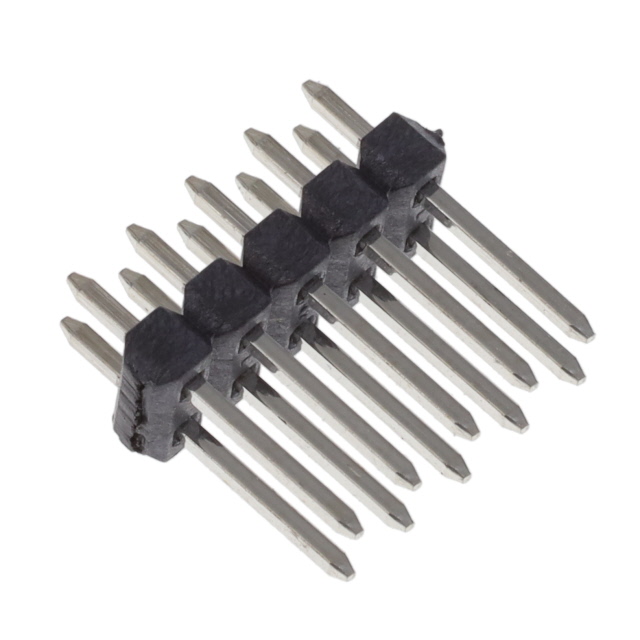

Molex 0879141026	Push-Pull	2.54 mm	0.1 in	0.117 in	2.97 mm	Tin	2.54 µm	100 µin	0.1 in	2.54 mm	Black	2	Board to Board Cable	Breakaway Header	10	2.54 çm	100 çin	12.25 mm	0.482 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	7 mm		0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square			0.276 in
Molex 0879140804	Push-Pull	2.54 mm	0.1 in	0.107 "	2.71 mm	Tin	1.9 Ám	74.8 Áin	0.1 in	2.54 mm	Black	2	Board to Board Cable	Breakaway Header	8	0.38 µm	15 µin	11.1 mm	0.437 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	6.1 mm	0.24 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square	Gold

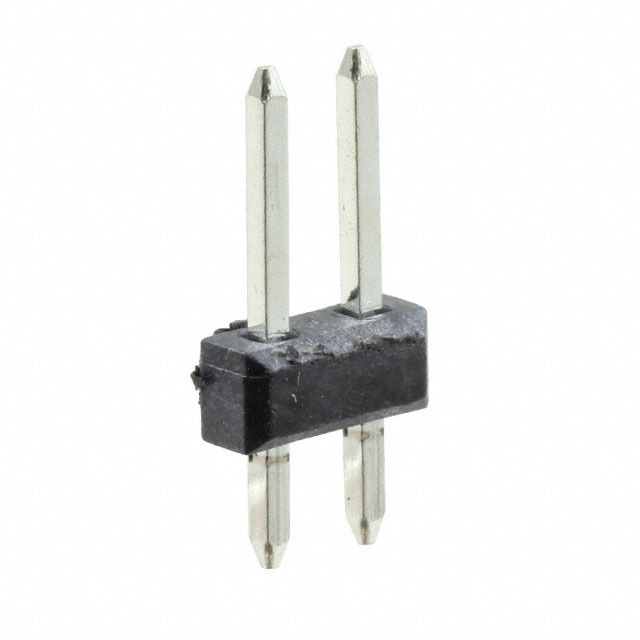

Molex 0879140216	Push-Pull	2.54 mm	0.1 in		2.79 mm	Tin	2.54 µm	100 µin			Black	2	Board to Board Cable	Breakaway Header	2	2.54 çm	100 çin	10.92 mm	0.43 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	5.84 mm	0.23 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square		0.11 in

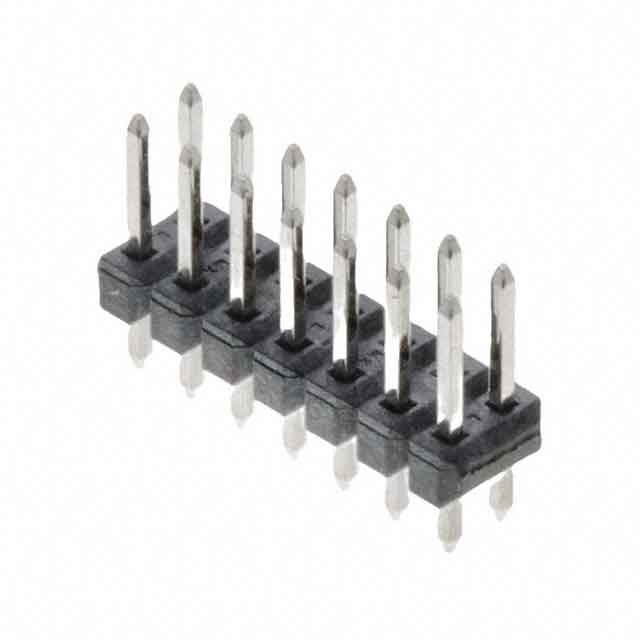

Molex 0879141416	Push-Pull	2.54 mm	0.1 in		2.79 mm	Tin	2.54 µm	100 µin	0.1 in	2.54 mm	Black	2	Board to Board Cable	Breakaway Header	14	2.54 çm	100 çin	10.92 mm	0.43 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	5.84 mm	0.23 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square		0.11 in
Molex 0879141015	Push-Pull	2.54 mm	0.1 in		2.79 mm	Tin	1.9 Ám	74.8 Áin	0.1 in	2.54 mm	Black	2	Board to Board Cable	Breakaway Header	10	0.76 Ám	30 Áin	10.92 mm	0.43 in	Through Hole	Solder	Copper Alloy	UL94 V-0	Male Pin	5.84 mm	0.23 in	0.09 in	2.29 mm	Unshrouded	All	Automotive General Purpose Lighting Medical Telecommunications	Square	Gold	0.11 in
