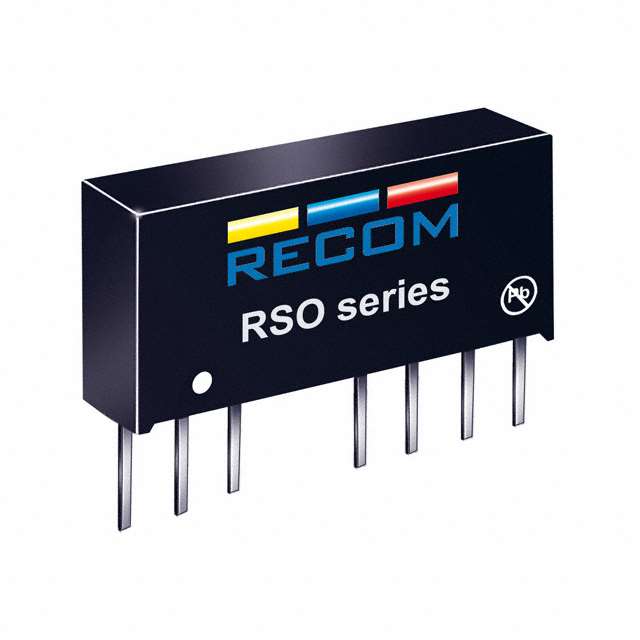

RSO-S_D(Z) Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV REG 4:1 18-72VIN 12VOUT

...

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Type	Current - Output (Max) [Max]	Control Features	Number of Outputs	Features	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)

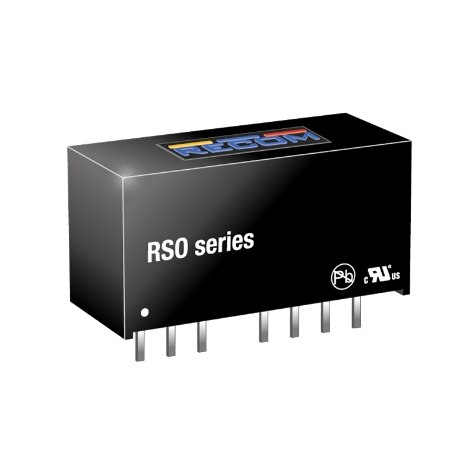

Recom Power RSO-4812SZ	12 V	18 V	72 V	8-SIP Module 7 Leads	1000 V	Isolated Module	83 mA	Active Low Enable	1	Remote On/Off SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial)	85 °C	-40 C	80 %
Recom Power RSO-2405S/H2	5 V	18 V	36 V	8-SIP Module 7 Leads	2000 V	Isolated Module	200 mA	Active Low Enable	1	Remote On/Off	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial) Medical	85 °C	-40 C	78 %
Recom Power RSO-1215D	15 V	9 V	18 V	8-SIP Module 7 Leads	1000 V	Isolated Module	34 mA	Active Low Enable	2	Remote On/Off SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial)	85 °C	-40 C	79 %	-15 V	34 mA
Recom Power RSO-1205DZ	5 V	4.5 V	18 V	8-SIP Module 7 Leads	1000 V	Isolated Module			2	SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial)	85 °C	-40 C	77 %	-5 V		100 mA	100 mA
Recom Power RSO-0505D	5 V	4.5 V	9 V	8-SIP Module 7 Leads	1000 V	Isolated Module		Active Low Enable	2	Remote On/Off SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial)	85 °C	-40 C	75 %	-5 V		100 mA	100 mA
Recom Power RSO-2412S/H2	12 V	18 V	36 V	8-SIP Module 7 Leads	2000 V	Isolated Module	83 mA	Active Low Enable	1	Remote On/Off SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial) Medical	85 °C	-40 C	83 %
Recom Power RSO-2412SZ/H3	12 V	9 V	36 V	8-SIP Module 7 Leads	3000 V	Isolated Module	83 mA	Active Low Enable	1	Remote On/Off SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial) Medical	85 °C	-40 C	80 %
Recom Power RSO-243.3DZ	3.3 V	9 V	36 V	8-SIP Module 7 Leads	1000 V	Isolated Module		Active Low Enable	2	Remote On/Off	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial)	85 °C	-40 C	74 %	-3.3 V			150 mA	150 mA
Recom Power RSO-123.3S/H3	3.3 V	9 V	18 V	8-SIP Module 7 Leads	3000 V	Isolated Module	0.3 A	Active Low Enable	1	Remote On/Off SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial) Medical	85 °C	-40 C	72 %
Recom Power RSO-2415DZ/H2	15 V	9 V	36 V	8-SIP Module 7 Leads	2000 V	Isolated Module	34 mA	Active Low Enable	2	Remote On/Off SCP	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	ITE (Commercial) Medical	85 °C	-40 C	80 %	-15 V	34 mA
