ATS-02C Series
Manufacturer: Advanced Thermal Solutions Inc.
Catalog

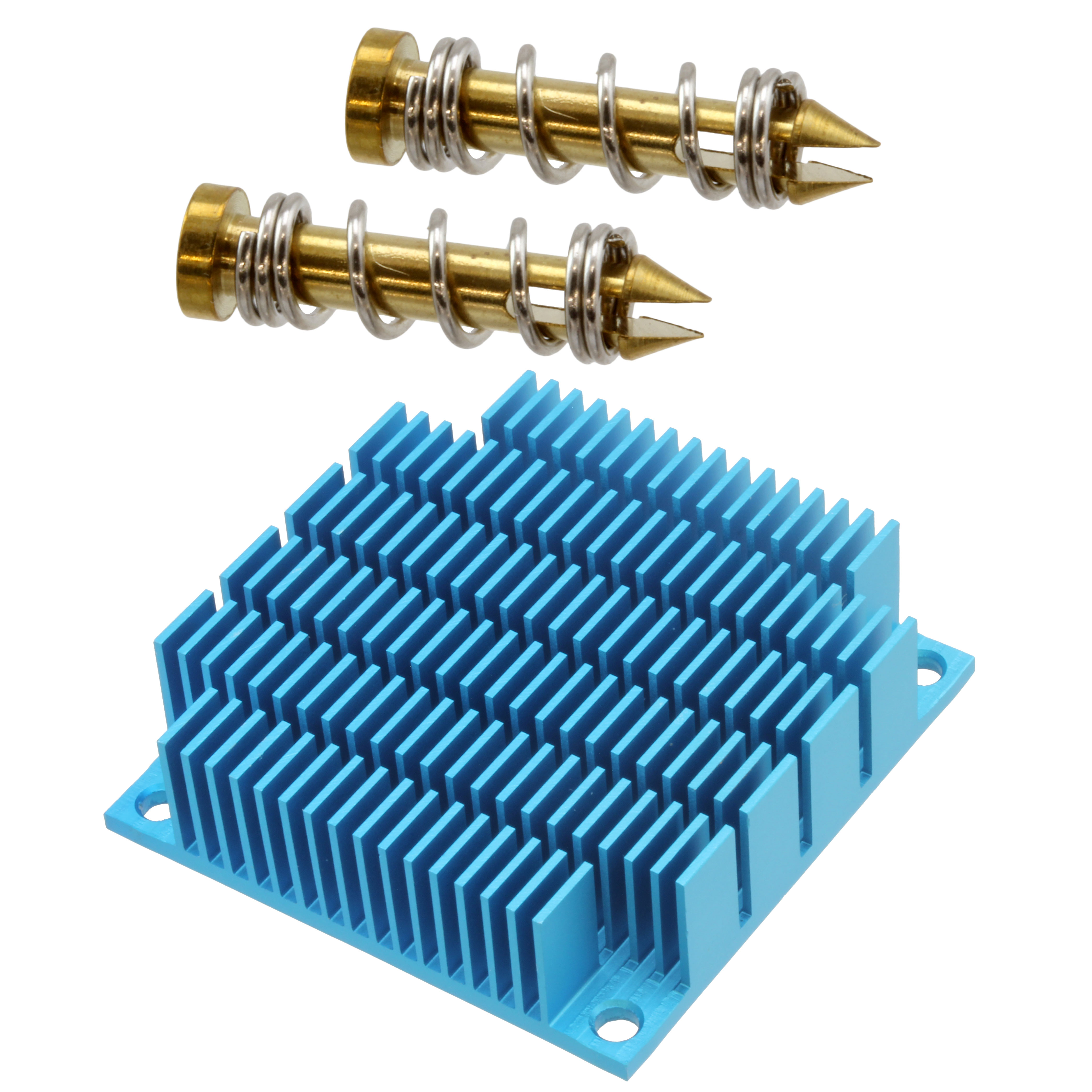

HEATSINK 54X54X10MM XCUT T766
...
| Part | Type | Width [x] | Width [x] | Material Finish | Attachment Method | Material | Shape | Package Cooled | Length [x] | Length [x] | Fin Height [z] | Fin Height [z] | Thermal Resistance @ Forced Air Flow | Length | Width | Fin Height | Fin Height | Length | Width [y] | Width [y] | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advanced Thermal Solutions Inc. | Top Mount | 2.126 " | 54 mm | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 54 mm | 2.126 " | 0.394 in | 10 mm | 18.08 °C/W 100 LFM | ||||||||
 Advanced Thermal Solutions Inc. | Top Mount | 1.772 in | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 1.772 " | 14.71 °C/W | 45 mm | 45 mm | 0.59 " | 15 mm | ||||||||
 Advanced Thermal Solutions Inc. | Top Mount | 1.575 in | 40 mm | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 1.181 in | 30 mm | 3.35 °C/W | ||||||||||
 Advanced Thermal Solutions Inc. | Top Mount | 2.126 " | 54 mm | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 54 mm | 2.126 " | 5.54 °C/W | 0.59 " | 15 mm | ||||||||
 Advanced Thermal Solutions Inc. | Top Mount | 1.772 in | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 1.772 " | 0.394 in | 10 mm | 20.39 °C/W | 45 mm | 45 mm | ||||||||
 Advanced Thermal Solutions Inc. | Top Mount | 1.772 in | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 1.772 " | 45 mm | 45 mm | 0.984 in | 25 mm | |||||||||
 Advanced Thermal Solutions Inc. | Top Mount | Blue Anodized | Push Pin | Aluminum | Rectangular Fins | ASIC BGA CPU LGA | 0.9 in | 22.86 mm | 7.31 °C/W 100 LFM | 57.9 mm | 2.28 " | 60.96 mm | 2.4 in | ||||||||
 Advanced Thermal Solutions Inc. | Top Mount | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 30 mm | 1.181 in | 0.79 in | 20 mm | 14.22 °C/W 100 LFM | 30 mm | 1.181 in | ||||||||
 Advanced Thermal Solutions Inc. | Top Mount | 2.126 " | 54 mm | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 54 mm | 2.126 " | 2.9 °C/W | 0.984 in | 25 mm | ||||||||
 Advanced Thermal Solutions Inc. | Top Mount | 2.362 in | 60 mm | Blue Anodized | Push Pin | Aluminum | Fins Square | ASIC BGA CPU LGA | 60 mm | 2.362 in | 0.79 in | 20 mm | 3.6 °C/W |
