har-flex Series

Manufacturer: HARTING

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS HAR-FLEX STRAIGHT FEMALE 9.05MM, 20PIN, PL1

Part	Insulation Material	Contact Material	Applications	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Number of Rows [custom]	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Contact Type	Style	Material Flammability Rating	Fastening Type	Mated Stacking Heights [Max] [z]	Mated Stacking Heights [Min] [z]	Shrouding	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Convert From (Adapter End)	Row Spacing	Row Spacing	Pitch	Pitch	Convert To (Adapter End)

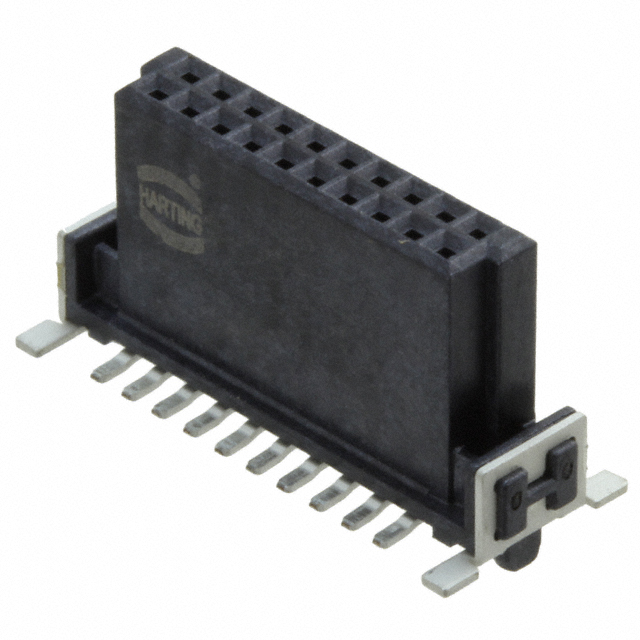

HARTING 15220202601000	Liquid Crystal Polymer (LCP)	Copper Alloy	General Purpose	Square	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Tin	20	1.27 mm	0.05 in	Solder	Receptacle	2	Black	All	0.356 "	9.05 mm	-55 C	125 °C	Surface Mount	Gold	Female Socket	Board to Board Cable	UL94 V-0	Push-Pull	13.8 mm	10.8 mm
HARTING 15220682601000					0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Tin	68 positions	1.27 mm	0.05 in	Solder	Receptacle	2	Black	All	0.356 "	9.05 mm	-55 C	125 °C	Surface Mount	Gold	Female Socket	Board to Board Cable	UL94 V-0	Push-Pull	13.8 mm	10.8 mm
HARTING 15150122601000	Liquid Crystal Polymer (LCP)	Copper Alloy		Square	0.05 in	1.27 mm	Board Guide Solder Retention	Tin	12	1.27 mm	0.05 in	Solder	Header	2	Black	All	0.167 "	4.25 mm	-55 C	125 °C	Right Angle Surface Mount	Gold	Male Pin	Board to Board Cable	UL94 V-0	Push-Pull			Shrouded - 4 Wall
HARTING 15130682601000	Liquid Crystal Polymer (LCP)	Copper Alloy		Square	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Tin	68 positions	1.27 mm	0.05 in	Solder	Header	2	Black	All			-55 C	125 °C	Surface Mount	Gold	Male Pin		UL94 V-0	Push-Pull			Shrouded - 4 Wall	11.1 mm 12.6 mm 13.9 mm 15.4 mm 18.5 mm 20 mm	4 mm	0.157 in	0.383 in	9.73 mm
HARTING 15150266601000	Liquid Crystal Polymer (LCP)	Copper Alloy		Square	0.05 in	1.27 mm	Board Guide Solder Retention	Tin	26	1.27 mm	0.05 in	Solder	Header	2	Black	All	0.167 "	4.25 mm	-55 C	125 °C	Right Angle Surface Mount	Gold	Male Pin	Board to Board Cable	UL94 V-0	Push-Pull			Shrouded - 4 Wall
HARTING 15150642601000	Liquid Crystal Polymer (LCP)	Copper Alloy		Square	0.05 in	1.27 mm	Board Guide Solder Retention	Tin	64	1.27 mm	0.05 in	Solder	Header	2	Black	All	0.167 "	4.25 mm	-55 C	125 °C	Right Angle Surface Mount	Gold	Male Pin	Board to Board Cable	UL94 V-0	Push-Pull			Shrouded - 4 Wall
HARTING 15160802070041									80					2							Free Hanging (In-Line)														Male Pins Plug	1.27 mm	0.05 "	0.05 in	1.27 mm	Plug Male Pins
HARTING 15220806601000	Liquid Crystal Polymer (LCP)	Copper Alloy	General Purpose	Square	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Tin	80	1.27 mm	0.05 in	Solder	Receptacle	2	Black	All	0.356 "	9.05 mm	-55 C	125 °C	Surface Mount	Gold	Female Socket	Board to Board Cable	UL94 V-0	Push-Pull	13.8 mm	10.8 mm
HARTING 15220402401000					0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Tin	40	1.27 mm	0.05 in	Solder	Receptacle	2	Black	All	0.356 "	9.05 mm	-55 C	125 °C	Surface Mount	Gold	Female Socket		UL94 V-0	Push-Pull
HARTING 15150086601000	Liquid Crystal Polymer (LCP)	Copper Alloy		Square	0.05 in	1.27 mm	Board Guide Solder Retention	Tin	8	1.27 mm	0.05 in	Solder	Header	2	Black	All	0.167 "	4.25 mm	-55 C	125 °C	Right Angle Surface Mount	Gold	Male Pin	Board to Board Cable	UL94 V-0	Push-Pull			Shrouded - 4 Wall
