EN3C8F Series

Catalog

CONN PLUG FMALE 8POS SOLDER CUP

Part	Color	Contact Material	Orientation	Fastening Type	Contact Finish - Mating	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Insert Material	Connector Type	Voltage Rating	Number of Positions	Ingress Protection	Primary Material	Shielding	Applications	Material Flammability Rating	Current Rating (Amps)	Features	Mounting Type	Termination
SWITCHCRAFT/CONXALL EN3C8FKX	Black	Copper Alloy	Keyed	Bayonet Lock	Gold	Thermoplastic	-40 C	65 °C	4.06 mm	0.265 in	0.16 "	6.73 mm	Elastomer	Plug Female Sockets	250 VAC	8	IP66 IP68	Plastic	Unshielded	General Purpose Instrumentation Marine Medical	UL94 V-0	6.5 A	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)

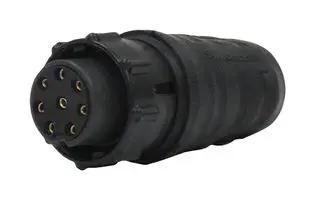

SWITCHCRAFT/CONXALL EN3C8FCX	Black	Copper Alloy	Keyed	Bayonet Lock	Gold	Thermoplastic	-40 C	65 °C	4.06 mm	0.265 in	0.16 "	6.73 mm	Elastomer	Plug Female Sockets	250 VAC	8	IP66 IP68	Plastic	Unshielded	General Purpose Instrumentation Marine Medical	UL94 V-0	6.5 A	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Crimp
SWITCHCRAFT/CONXALL EN3C8FCXPKG	Black	Copper Alloy	Keyed	Bayonet Lock	Gold	Thermoplastic	-40 C	65 °C	4.06 mm	0.265 in	0.16 "	6.73 mm	Elastomer	Plug Female Sockets	250 VAC	8	IP66 IP68	Plastic	Unshielded	General Purpose Instrumentation Marine Medical	UL94 V-0	6.5 A	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Crimp
SWITCHCRAFT/CONXALL EN3C8FX	Black	Copper Alloy	Keyed	Bayonet Lock	Gold	Thermoplastic	-40 C	65 °C	4.06 mm	0.265 in	0.16 "	6.73 mm	Elastomer	Plug Female Sockets	250 VAC	8	IP66 IP68	Plastic	Unshielded	General Purpose Instrumentation Marine Medical	UL94 V-0	6.5 A	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL EN3C8FLX	Black	Copper Alloy	Keyed	Bayonet Lock	Gold	Thermoplastic	-40 C	65 °C	5.84 mm	0.38 in	0.23 in	9.65 mm	Elastomer	Plug Female Sockets	250 VAC	8	IP66 IP68	Plastic	Unshielded	General Purpose Instrumentation Marine Medical	UL94 V-0	6.5 A	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)
