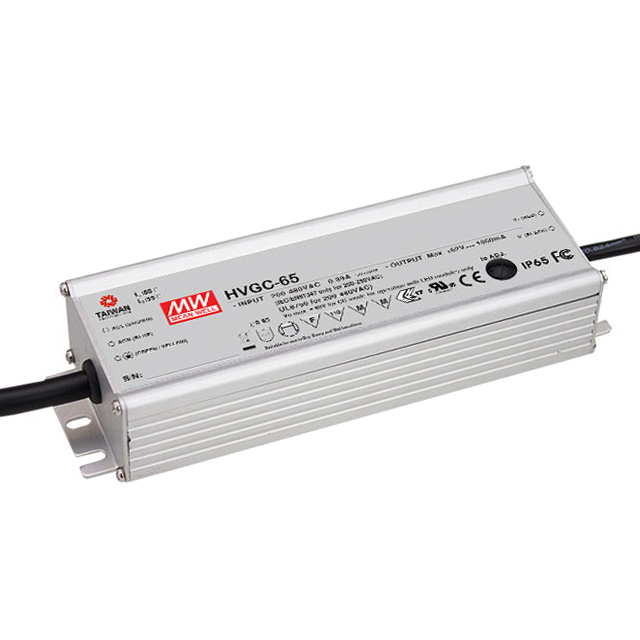

HVGC-65 Series

Catalog

LED DRIVER CC AC/DC 9-93V 700MA

Part	Mounting Type	Type	Termination Style	Voltage - Isolation	Approval Agency	Voltage - Input (Min) [Min]	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Ratings	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Topology	Dimming	Standard Number
MEAN WELL USA Inc. HVGC-65-700B	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90.5 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	9 V	93 V	1	IP67	528 VAC	700 mA	AC DC Converter	Analog PWM
MEAN WELL USA Inc. HVGC-65-500B	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90.5 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	13 V	130 V	1	IP67	528 VAC	500 mA	AC DC Converter	Analog PWM
MEAN WELL USA Inc. HVGC-65-350AB	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	13 V	130 V	1	IP65	528 VAC	1.05 A	AC DC Converter	Analog PWM	UL 8750
MEAN WELL USA Inc. HVGC-65-350A	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	18 V	186 V	1	IP65	528 VAC	350 mA	AC DC Converter
MEAN WELL USA Inc. HVGC-65-1050A	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	6 V	62 V	1	IP65	528 VAC	1.05 A	AC DC Converter
MEAN WELL USA Inc. HVGC-65-500A	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90.5 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	13 V	130 V	1	IP65	528 VAC	500 mA	AC DC Converter

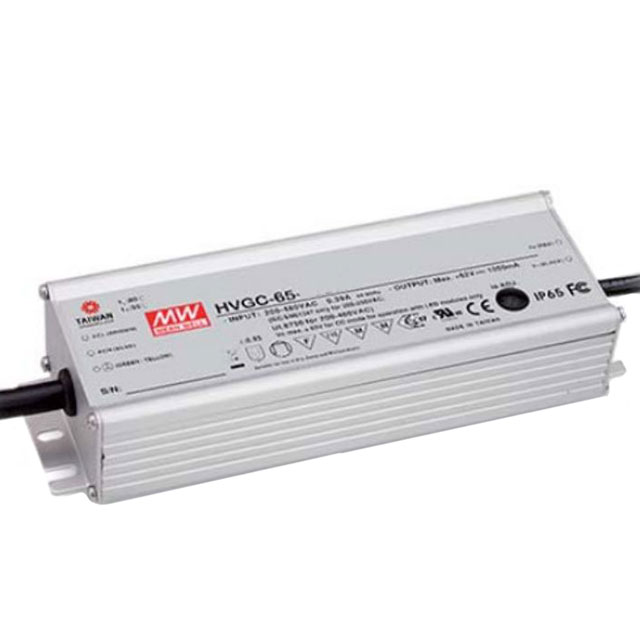

MEAN WELL USA Inc. HVGC-65-700AB	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	13 V	130 V	1	IP65	528 VAC	1.05 A	AC DC Converter	Analog PWM	UL 8750
MEAN WELL USA Inc. HVGC-65-350B	Chassis Mount	Constant Current	Wire Leads	3750 VDC	CB CE cURus ENEC	180 VAC	65 W	90 %	80 °C	-40 C	165 mm	1.45 in	61.5 mm	36.8 mm	6.5 in	2.42 in	OTP OVP SCP	18 V	186 V	1	IP67	528 VAC	350 mA	AC DC Converter	Analog PWM
