SWR201 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 2POS 2MM

Part	Insulation Material	Voltage Rating	Termination	Contact Material	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [x]	Contact Length - Post	Contact Type	Contact Finish - Post	Current Rating (Amps)	Connector Type	Mounting Type	Shrouding	Number of Positions	Fastening Type	Insulation Color	Contact Shape	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish - Mating	Features	Insulation Height [custom]	Insulation Height [custom]
Sullins Connector Solutions SWR201-NREN-S02-SA-WH	Nylon 6/6 Polyamide (PA66)	100 V	Kinked Pin Solder	Brass	All	6.1 mm	0.24 in	UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire	0.134 "	3.4 mm	Male Pin	Tin	2 A	Header	Through Hole	Shrouded - 4 Wall	2	Detent Lock	White	Square	1
Sullins Connector Solutions SWR201-NREN-S14-SA-WH	Nylon 6/6 Polyamide (PA66)	100 V	Kinked Pin Solder	Brass	All	6.1 mm	0.24 in	UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire	0.134 "	3.4 mm	Male Pin	Tin	2 A	Header	Through Hole	Shrouded - 4 Wall	14	Detent Lock	White	Square	1
Sullins Connector Solutions SWR201-NREN-S16-SA-WH	Nylon 6/6 Polyamide (PA66)	100 V	Kinked Pin Solder	Brass	All	6.1 mm	0.24 in	UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire	0.134 "	3.4 mm	Male Pin	Tin	2 A	Header	Through Hole	Shrouded - 4 Wall	16	Detent Lock	White	Square	1

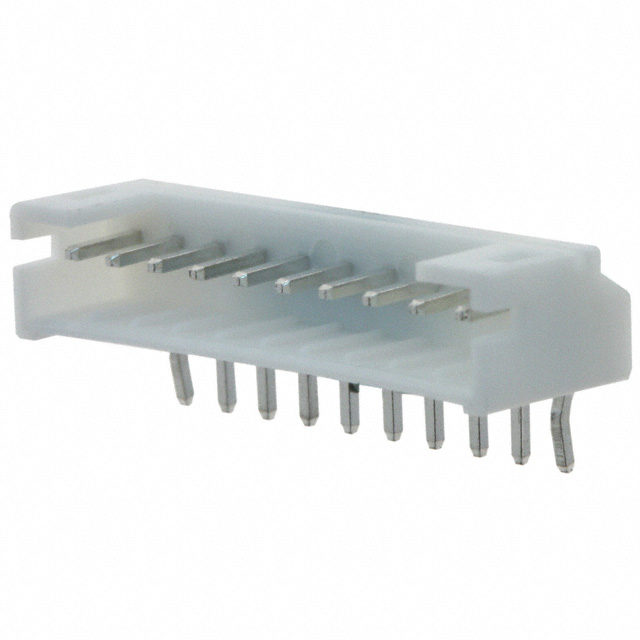

Sullins Connector Solutions SWR201-NRTN-S10-RL-WH	Nylon 6/6 Polyamide (PA66)	125 VDC	Kinked Pin Solder	Brass	All			UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire	0.134 "	3.4 mm	Male Pin	Tin	1 A	Header	Right Angle Through Hole	Shrouded - 4 Wall	10	Detent Lock	White	Square	1	4.8 mm	0.189 in
Sullins Connector Solutions SWR201-NRPN-S02-HM-BG	Nylon 6T Polyamide (PA6T)	100 V	Solder	Brass	All			UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire			Male Pin	Gold	2 A	Header	Right Angle Surface Mount	Shrouded - 4 Wall	2	Detent Lock	Beige	Square	1	5.51 mm	0.217 in	Flash	Flash	Gold	Solder Retention

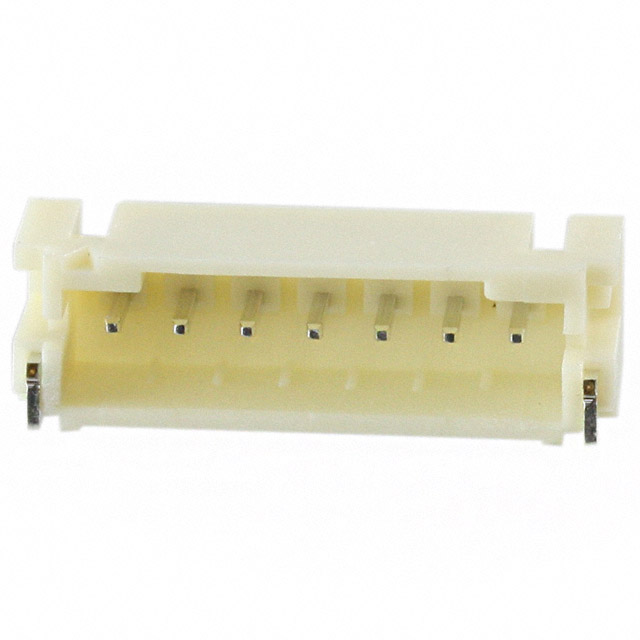

Sullins Connector Solutions SWR201-NRTN-S07-HM-BG	Nylon 4/6 Polyamide (PA46)	125 VDC	Solder	Brass	All			UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire			Male Pin	Tin	1 A	Header	Right Angle Surface Mount	Shrouded - 4 Wall	7	Detent Lock	Beige	Square	1	5.51 mm	0.217 in				Solder Retention
Sullins Connector Solutions SWR201-NREN-S15-SA-WH	Nylon 6/6 Polyamide (PA66)	100 V	Kinked Pin Solder	Brass	All	6.1 mm	0.24 in	UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire	0.134 "	3.4 mm	Male Pin	Tin	2 A	Header	Through Hole	Shrouded - 4 Wall	15	Detent Lock	White	Square	1

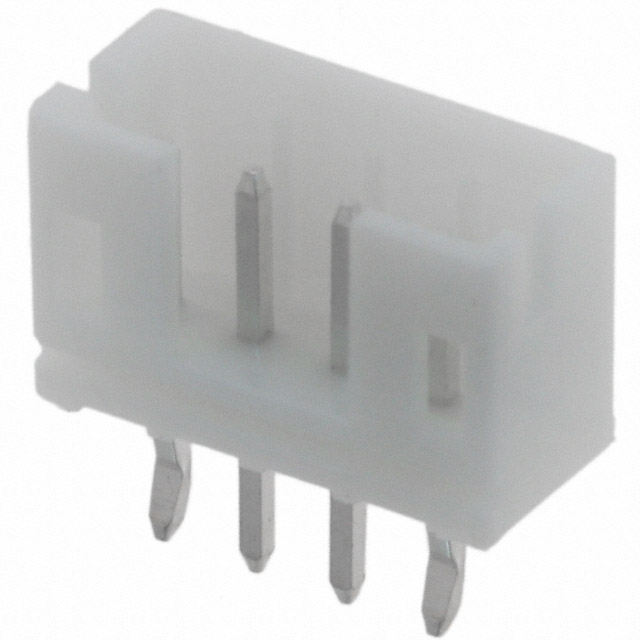

Sullins Connector Solutions SWR201-NRTN-S04-SA-WH	Nylon 6/6 Polyamide (PA66)	125 VDC	Kinked Pin Solder	Brass	All			UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire	0.134 "	3.4 mm	Male Pin	Tin	1 A	Header	Through Hole	Shrouded - 4 Wall	4	Detent Lock	White	Square	1							0.236 "	6 mm

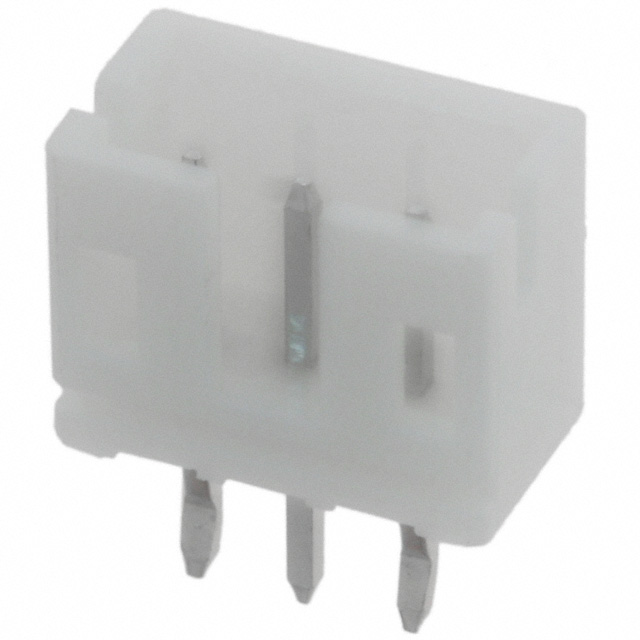

Sullins Connector Solutions SWR201-NRTN-S03-SA-WH	Nylon 6/6 Polyamide (PA66)	125 VDC	Kinked Pin Solder	Brass	All			UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire	0.134 "	3.4 mm	Male Pin	Tin	1 A	Header	Through Hole	Shrouded - 4 Wall		Detent Lock	White	Square	1							0.236 "	6 mm

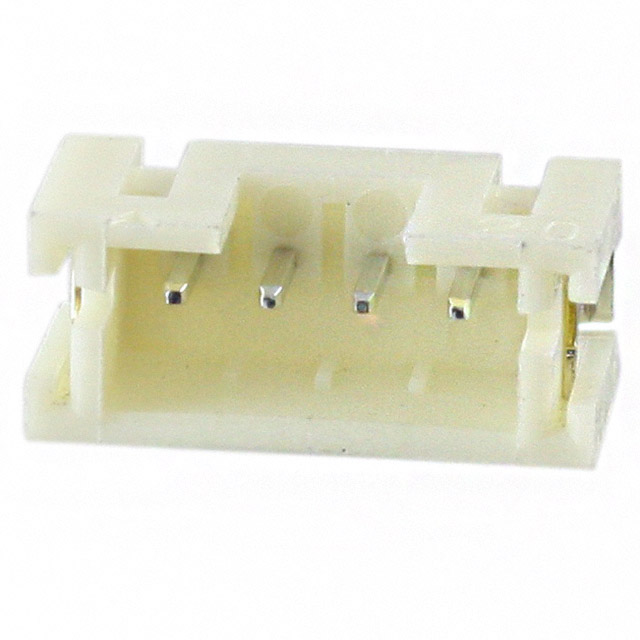

Sullins Connector Solutions SWR201-NRTN-S04-SM-BG	Nylon 4/6 Polyamide (PA46)	125 VDC	Solder	Brass	All			UL94 V-0	85 °C	-25 °C	0.079 "	2 mm	Board to Cable/Wire			Male Pin	Tin	1 A	Header	Surface Mount	Shrouded - 4 Wall	4	Detent Lock	Beige	Square	1						Solder Retention	0.26 in	6.6 mm
