1415410 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

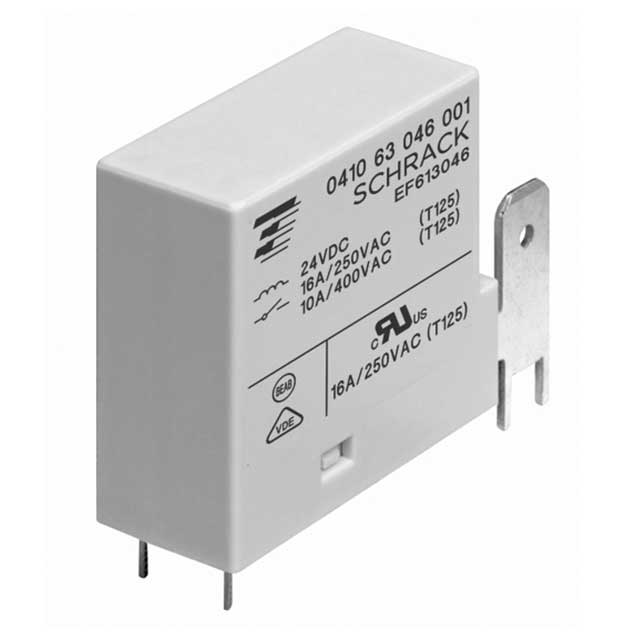

RELAY GEN PURPOSE SPST 16A 6V
| Part | Coil Resistance | Mounting Type | Must Release Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type | Termination Style | Contact Form | Coil Current | Contact Material | Contact Rating (Current) | Switching Voltage [Max] | Coil Type | Load - Max Switching | Coil Insulation | Approval Agency | Must Operate Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 100 Ohms | Through Hole | 0.45 VDC | -20 ░C | 125 °C | General Purpose | PC Pin Quick Connect - 0.250" (6.3mm) | SPST-NO (1 Form A) | 0.06 A | Silver Cadmium Oxide (AgCdO) | 16 A | 400 VAC | Non Latching | 6400 VA | Class F | cURus VDE | 3.6 VDC | |
TE Connectivity AMP Connectors | 400 Ohms | Through Hole | 0.9 VDC | -20 ░C | 125 °C | General Purpose | PC Pin Quick Connect - 0.250" (6.3mm) | SPST-NO (1 Form A) | 0.03 A | Silver Cadmium Oxide (AgCdO) | 16 A | 400 VAC | Non Latching | 6400 VA | Class F | cURus VDE | 7.3 VDC | 12 VDC |
