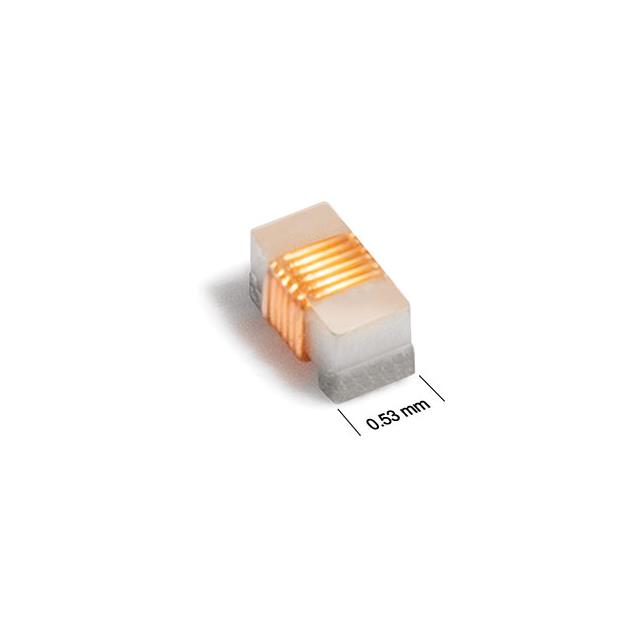

0302CS Series
Manufacturer: Coilcraft
Beta
⌘K
RF INDUCTORS - SMD 0302 3NH UNSHLD 5% 950MA 60MOHMS AECQ2
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance | Frequency - Self Resonant | Mounting Type | Shielding | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Tolerance | Inductance Frequency - Test | Q @ Freq | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | 0.018 " | 0.45 mm | 3 nH | 15.1 GHz | Surface Mount | Unshielded | Nonstandard | 0.021 " | 0.034 in | 0.53 mm | 0.86 mm | Ceramic | 125 °C | -40 C | 950 mA | 5 % | 250 MHz | 56 900 MHz | |
Coilcraft | 0.018 " | 0.45 mm | 29 nH | 4.83 GHz | Surface Mount | Unshielded | Nonstandard | 0.021 " | 0.034 in | 0.53 mm | 0.86 mm | Ceramic | 125 °C | -40 C | 0.33 A | 5 % | 250 MHz | 51 900 MHz | 470 mOhm |
