XA1110 Series
Manufacturer: Semtech Corporation
Beta
⌘K

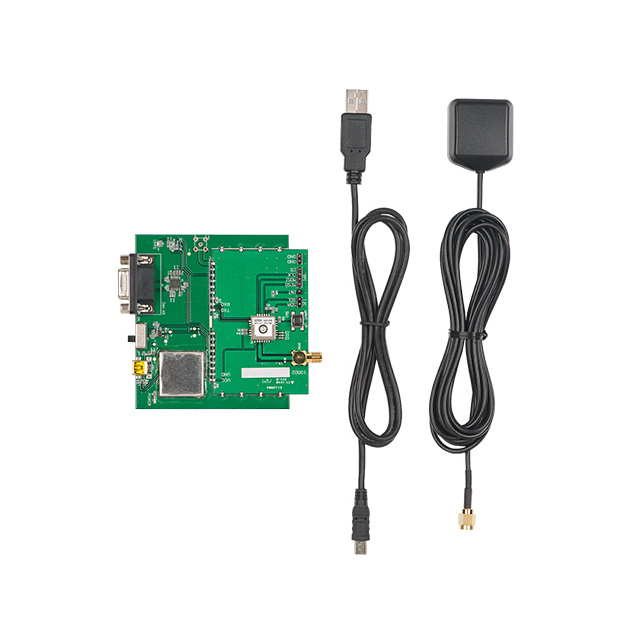

XA1110 AIRPRIME DEV KIT
| Part | For Use With/Related Products | Supplied Contents | Contents | Utilized IC / Part | Type | Mounting Type | Antenna Type | Sensitivity | RF Family/Standard | Package / Case | Frequency [Min] | Frequency | Frequency [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Serial Interfaces | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Data Rate | Data Interface | Antenna Connector | Current - Receiving | Applications | Supplier Device Package | Modulation or Protocol |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | MT3333 XA1110 | Board(s) | Board(s) | MT3333 XA1110 | GNSS (Beidou GLONASS GPS) | |||||||||||||||||||||

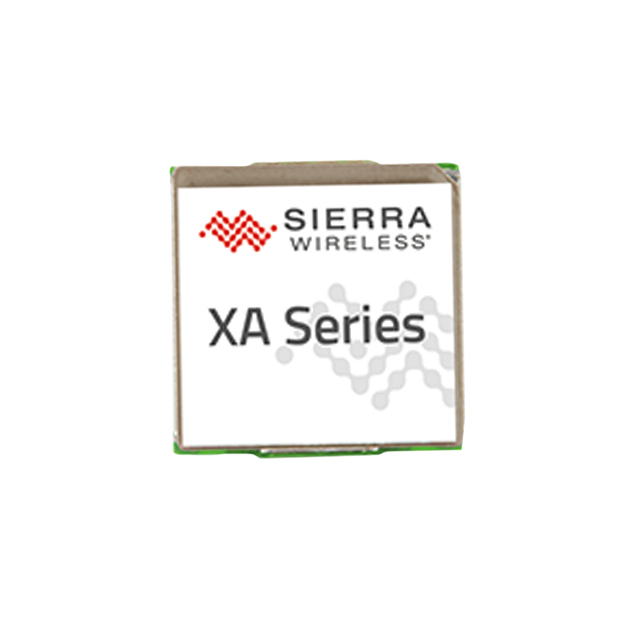

 Semtech Corporation | MT3333 | Surface Mount | Antenna Not Included | -165 dBm | Navigation | Module | 1.575 GHz | 1.605 GHz | 1.598 GHz | 3 V | 4.3 V | I2C SPI UART | GLONASS GPS | 85 °C | -40 C | 9.6 kbps | ||||||||||
 Semtech Corporation | Surface Mount | -165 dBm | Module | 1.598 GHz | 1.575 GHz | 1.605 GHz | 3 V | 4.3 V | 85 °C | -40 C | SPI UART | Castellation | 28 mA | General Purpose | Module | GLONASS GPS |
