EVAL45 Series
Manufacturer: INFINEON
Beta
⌘K

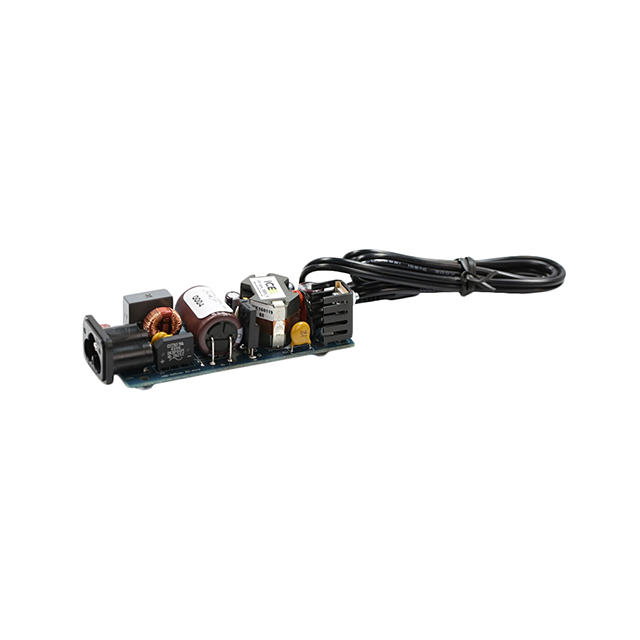

THIS 45W ADAPTER EVALUATION BOARD IS INTENDED TO BE A FORM, FIT AND FUNCTION TEST PLATFORM FOR LOW COST CHARGER AND ADAPTER APPLICATIONS TO SHOW THE OPERATION OF THE 800V COOLMOS™ P7 SJ MOSFET (IPA80R450P7) AS WELL AS THE OVERALL CONTROLLER DESIGN.
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Power - Output | Main Purpose | Contents | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Regulator Topology | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1 Isolated Output Isolated | 1 | Board(s) | Fully Populated | 45 W | AC/DC Primary Side | Board(s) | 19 V | 265 VAC | 90 VAC | ICE2QS03G | Flyback | 2.4 A |
