DAR71210 Series
Manufacturer: Sensata-Crydom
Beta
⌘K

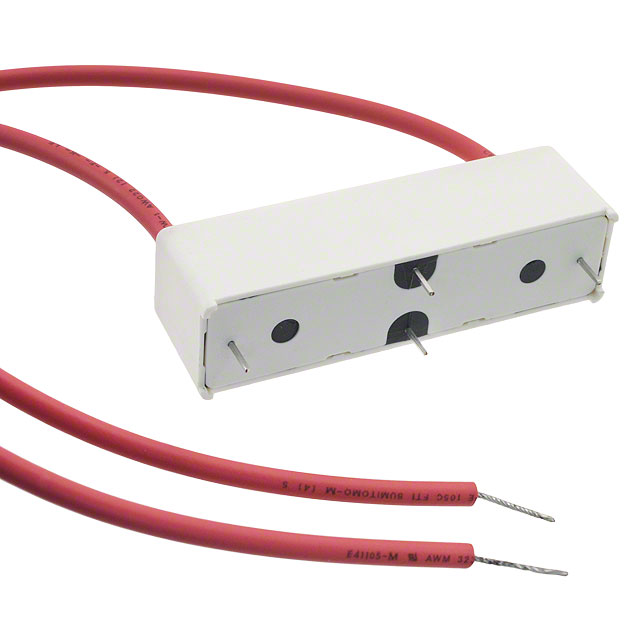

RELAY REED SPST-NO 3A 12V
| Part | Coil Resistance | Switching Voltage [Max] | Contact Material | Coil Current | Coil Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Rating (Current) | Release Time | Coil Voltage | Operate Time | Must Release Voltage | Contact Form | Must Operate Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 150 Ohms | 1000 VAC 1000 VDC | Rhodium (Rh) | 80 mA | Non Latching | -20 ░C | 70 °C | Through Hole | 3 A | 2 ms | 12 VDC | 3 ms | 1.25 VDC | SPST-NO (1 Form A) | 9 VDC | PC Pin Wire Leads |
