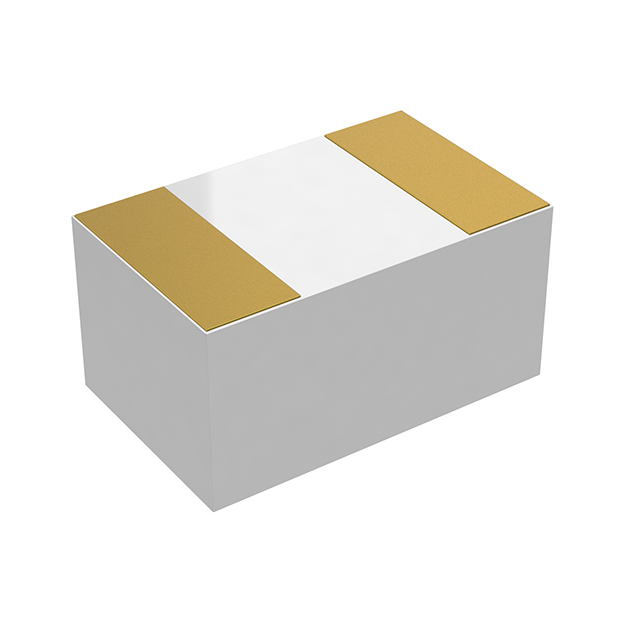

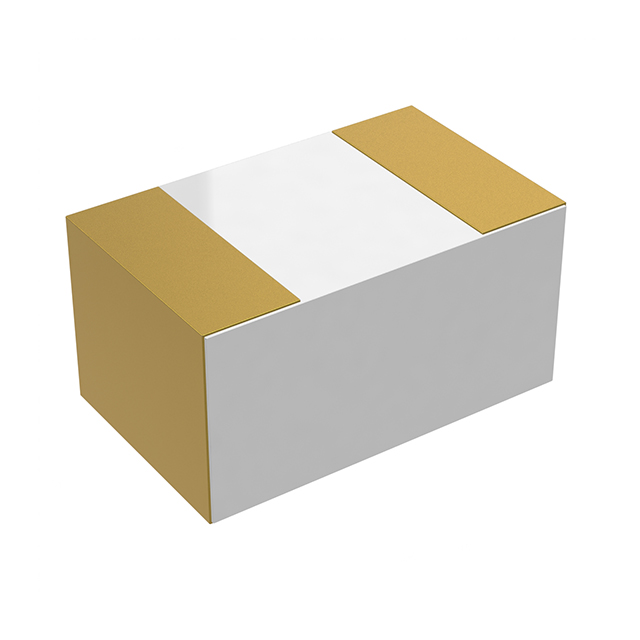

QB0805 Series

Catalog

THERMAL CONDUCTOR Q-BRIDGE

Part	Thickness [custom]	Thickness [custom]	Thermal Conductivity [Min]	Thermal Conductivity [Max]	Material	Thermal Resistivity	Type	Usage	Shape	Outline [x]	Outline [y]
KYOCERA AVX QB0805B40ESC	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Beryllium Oxide	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805B40WYC	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Beryllium Oxide	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805A40WYT\500	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Aluminum Nitride	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805B40EST	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Beryllium Oxide	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805B40WCAT	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Beryllium Oxide	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805A40WCAT	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Aluminum Nitride	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805B40WYT	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Beryllium Oxide	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805B40EST\500	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Beryllium Oxide	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805A40EST	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Aluminum Nitride	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
KYOCERA AVX QB0805A40WYT	1.02 mm	0.0402 in	100 W/m-K	156 W/m-K	Aluminum Nitride	7 °C/W 10 °C/W	Thermal Bridge Jumper	Heat Transfer	Rectangular	2.03 mm	1.27 mm
