745994 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

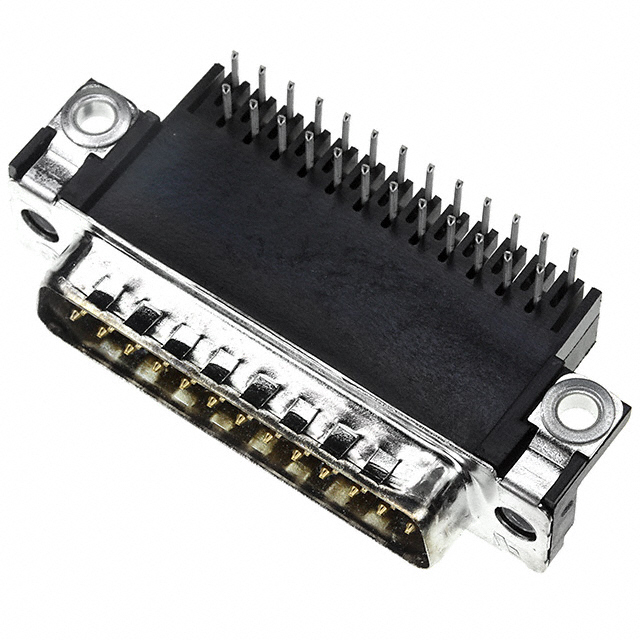

CONN D-SUB PLUG 25POS R/A SOLDER
| Part | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Backset Spacing | Backset Spacing | Features | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Flange Feature | Flange Feature | Current Rating (Amps) | Mounting Type | Contact Type | Contact Finish | Connector Type | Number of Rows [custom] | Number of Positions | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 125 VDC | -55 C | 105 ░C | Black | 0.59 in | 14.99 mm | Ground Strap Grounding Indents | 30 Áin | 0.76 Ám | UL94 V-0 | Housing/Shell | 4-40 | 6 A | Right Angle Through Hole | Signal | Gold | Plug Male Pins | 2 | 25 | Solder | B DB | 3 | D-Sub |
