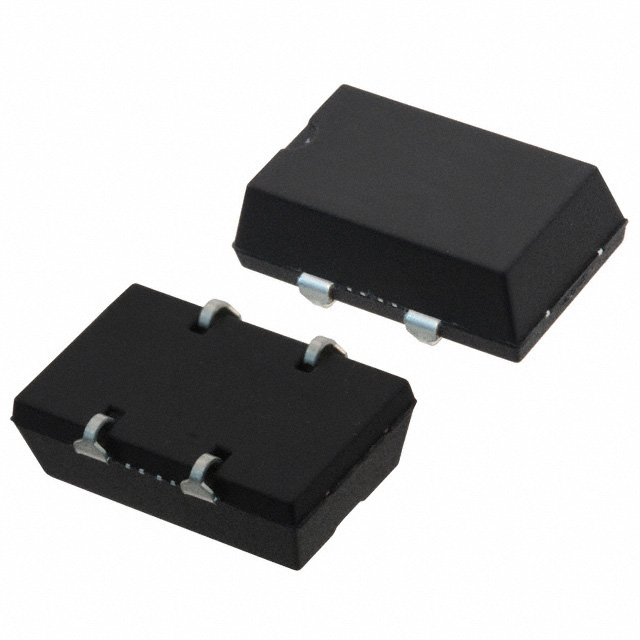

ECS-8FX Series
Manufacturer: ECS Inc.
Beta
⌘K
STANDARD CLOCK OSCILLATORS 12.288MHZ 3.3VOLTS 200PPM -40C +85C
| Part | Function | Voltage - Supply | Package / Case | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency Stability | Operating Temperature [Max] | Operating Temperature [Min] | Base Resonator [custom] | Current - Supply (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Type | Output | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | Enable/Disable | 3.3 V | 5.08 mm | 4-SOJ | 0.185 " | 4.7 mm | 200 ppm | 85 °C | -40 C | Crystal | 9 mA | 14 mm | 0.551 in | 8.65 mm | 0.341 in | Surface Mount | XO (Standard) | CMOS | 12.288 MHz |
 ECS Inc. | Enable/Disable | 5.08 mm | 4-SOJ | 0.185 " | 4.7 mm | 200 ppm | 85 °C | -40 C | Crystal | 35 mA | 14 mm | 0.551 in | 8.65 mm | 0.341 in | Surface Mount | XO (Standard) | CMOS TTL | 32.768 MHz | |
ECS Inc. | Enable/Disable | 5.08 mm | 4-SOJ | 0.185 " | 4.7 mm | 200 ppm | 85 °C | -40 C | Crystal | 23 mA | 14 mm | 0.551 in | 8.65 mm | 0.341 in | Surface Mount | XO (Standard) | CMOS TTL | 7.3728 MHz | |
ECS Inc. | Enable/Disable | 5.08 mm | 4-SOJ | 0.185 " | 4.7 mm | 200 ppm | 85 °C | -40 C | Crystal | 23 mA | 14 mm | 0.551 in | 8.65 mm | 0.341 in | Surface Mount | XO (Standard) | CMOS TTL | 25.175 MHz | |
ECS Inc. | Enable/Disable | 3.3 V | 5.08 mm | 4-SOJ | 0.185 " | 4.7 mm | 200 ppm | 85 °C | -40 C | Crystal | 9 mA | 14 mm | 0.551 in | 8.65 mm | 0.341 in | Surface Mount | XO (Standard) | CMOS | 12 MHz |
