R12505 Series

Catalog

SMA / STRAIGHT PLUG CRIMP TYPE C

Part	For Use With/Related Products	Color	Body Material	Connector Style	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Center Contact Plating	Mating Cycles	Housing Color	Fastening Type	Impedance	Contact Termination	Connector Type	Shield Termination	Frequency - Max [Max]	Center Contact Material	Number of Ports	Mounting Type	Cable Group
Radiall USA, Inc. R125054901W	SMA Plugs	Silver	Stainless Steel	SMA

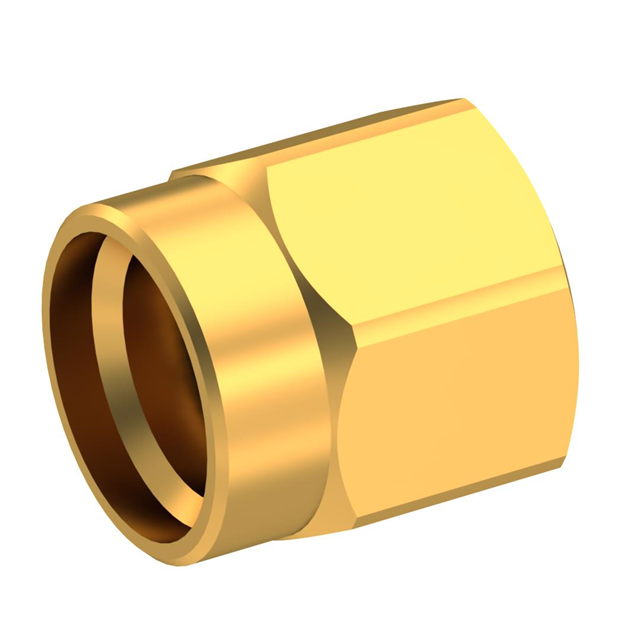

Radiall USA, Inc. R125054500	SMA Plugs	Gold	Stainless Steel	SMA	Gold

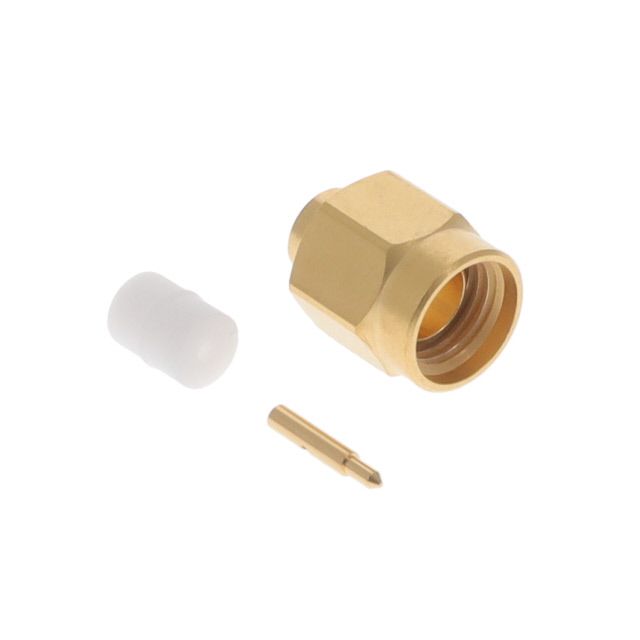

Radiall USA, Inc. R125055000W			Stainless Steel	SMA	Gold	Polytetrafluoroethylene (PTFE)	105 ░C	-65 ░C	500 V	Gold	500	Gold	Threaded	50 Ohms	Solder	Plug Male Pin	Solder	26.5 GHz	Brass	1	Free Hanging (In-Line)
Radiall USA, Inc. R125053901W			Stainless Steel	SMA			105 ░C	-65 ░C	500 V		500	Silver	Threaded	50 Ohms	Crimp	Plug Male Pin	Crimp	18 GHz		1	Free Hanging (In-Line)

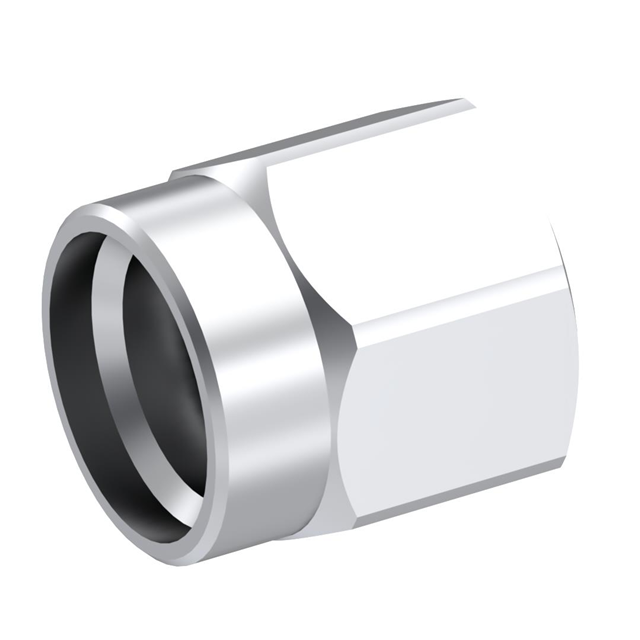

Radiall USA, Inc. R125054901			Stainless Steel	SMA		Polytetrafluoroethylene (PTFE)	105 ░C	-65 ░C	500 V	Gold	500		Threaded	50 Ohms	Crimp	Plug Male Pin	Crimp	18 GHz	Brass	1	Free Hanging (In-Line)

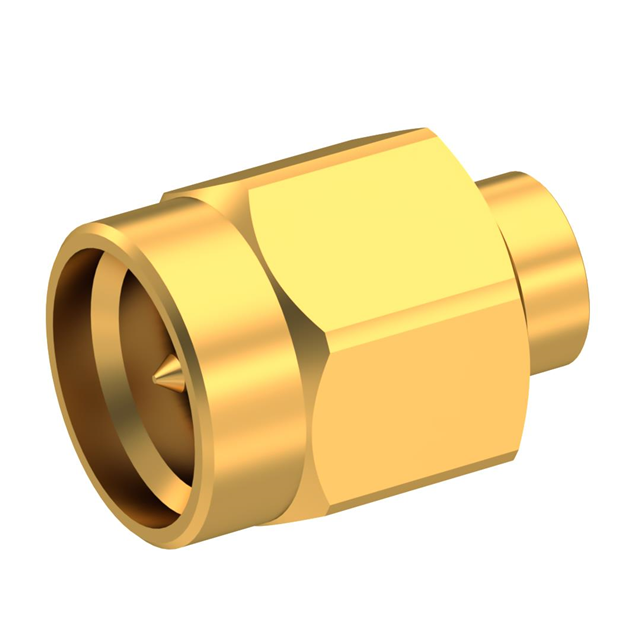

Radiall USA, Inc. R125055000			Stainless Steel	SMA	Gold	Polytetrafluoroethylene (PTFE)	105 ░C	-65 ░C	500 V	Gold	500	Gold	Threaded	50 Ohms	Solder	Plug Male Pin	Solder	26.5 GHz	Brass	1	Free Hanging (In-Line)
Radiall USA, Inc. R125054500W	SMA Plugs	Gold	Stainless Steel	SMA	Gold

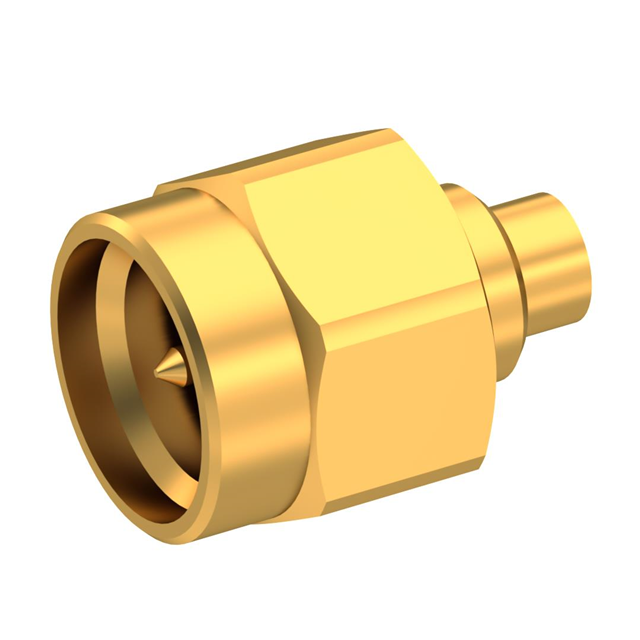

Radiall USA, Inc. R125052500			Stainless Steel	SMA	Gold	Polytetrafluoroethylene (PTFE)	105 ░C	-65 ░C	335 V	Gold	500	Gold	Threaded	50 Ohms	Solder	Plug Male Pin	Solder	18 GHz	Brass	1	Free Hanging (In-Line)	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R125054000W	SMA Plugs	Gold	Stainless Steel	SMA	Gold
Radiall USA, Inc. R125052000W			Stainless Steel	SMA	Gold	Polytetrafluoroethylene (PTFE)	105 ░C	-65 ░C	335 V	Gold	500	Gold	Threaded	50 Ohms	Solder	Plug Male Pin	Solder	18 GHz	Brass	1	Free Hanging (In-Line)	RG-405 (.085" Semi Rigid)
