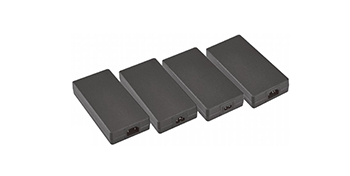

Desktop Power Supply 48V 250W *New Slimline Design*
Beta
⌘K
Desktop Power Supply 48V 250W *New Slimline Design*
Desktop Power Supply 48V 250W *New Slimline Design*
| Part | Input Type | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Efficiency | Region Utilized | Input Connector | Output Connector | Output Connector | Applications | Voltage - Output | Cord Length | Cord Length | Form | No Load Power Consumption | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Standard Number | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | Cord (Sold Separately) | 5.2 A | 1.8 in | 182.9 mm | 7.2 " | 45.7 mm | 3.3 " | 83.8 mm | Level VI | International | IEC 320-C14 | Rectangular | 6 Position | ITE (Commercial) | 48 V | 47 in | 1.2 m | Desktop (Class I) | 210 mW | 264 VAC | 90 VAC | 0 °C | 60 °C | 250 W | 60950-1 | CB CCC CE cULus FCC TUV |
 TT Electronics/BI | Cord (Sold Separately) | 10.41 A | 1.8 in | 182.9 mm | 7.2 " | 45.7 mm | 3.3 " | 83.8 mm | Level VI | International | IEC 320-C14 | Rectangular | 6 Position | ITE (Commercial) | 24 V | 47 in | 1.2 m | Desktop (Class I) | 210 mW | 264 VAC | 90 VAC | 0 °C | 60 °C | 250 W | 60950-1 | CB CCC CE cULus FCC TUV |
