PXU21A Series

Catalog

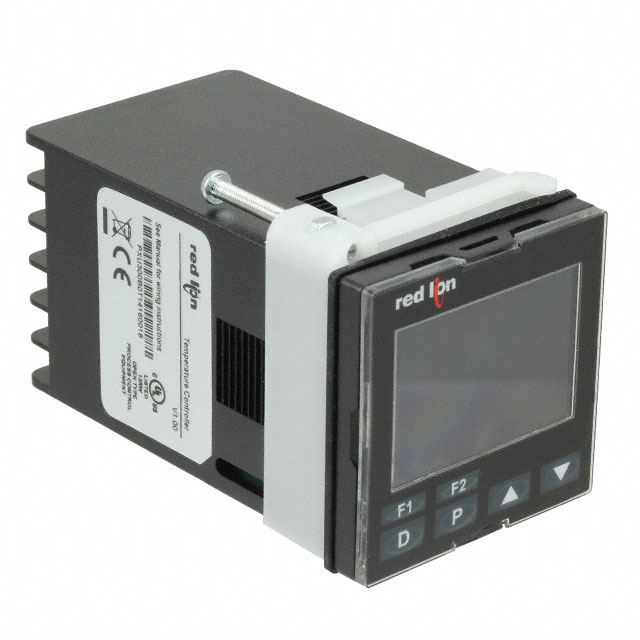

PID CONTROLLER, 1/16 DIN, SSR, RELAY OUTPUTS, 2 INPUTS, 24 VDC, RS485

Part	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Display Type	Control Method	Type	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Display Characters - Height	Output Type	Voltage - Supply	Number of Characters Per Row	Number of Characters Per Row	Communications	Mounting Type	Ingress Protection	Input Range [Max]	Input Range [Min]
Red Lion Controls PXU21AB0	150.14 g	0.331 lb	50 °C	0 °C	Backlight LCD - Dual Color Characters	On/Off Proportional (PID)	Process Temperature Controller (RTD Type B E J K L N R S T TXK U)	Screw Terminal	45 mm	45 mm	Excitation Supply Sensor Fault Detection	0.275 in 0.433 in 7 mm 11 mm	Relay (3) Solid State	24 V	4	4	RS-485	Panel Mount	IP65 - Dust Tight Water Resistant	10 V 20 mA 1800 °C	-200 °C 0 V 4 mA
