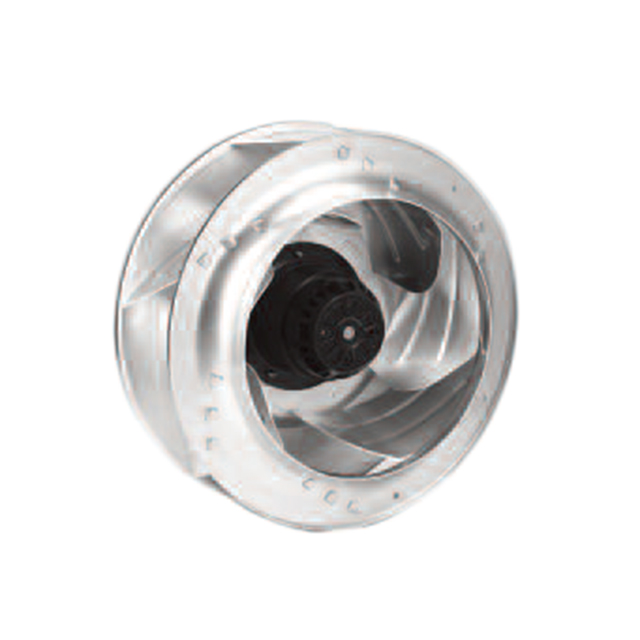

OAB360 Series
Manufacturer: ORION FANS
Beta
⌘K
AC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 115V 100V TO 125V 1410CFM/1645CFM 68DB/73DB 360 X 172.3MM
| Part | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Width [x] | Features | Air Flow | Air Flow | Ingress Protection | Size / Dimension [diameter] | Size / Dimension | Fan Type | Power (Watts) | Approval Agency | Termination | Voltage - Rated | RPM | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 40000 Hrs | Aluminum | 2.3 A | Metal | 100 VAC | 125 VAC | 80 °C | -40 C | 548 Pa | 2.2 in H2O | 167.3 mm | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1645 CFM | 46.06 m³/min | IP55 - Dust Protected Water Resistant | 360 mm | Round | Motorized Impellers | 270 W | cURus TUV | 4 Wire Leads | 115 VAC | 1600 RPM | Ball |
ORION FANS | 40000 Hrs | Aluminum | 1.2 A | Metal | 80 °C | -40 C | 548 Pa | 2.2 in H2O | 167.3 mm | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1645 CFM | 46.06 m³/min | IP55 - Dust Protected Water Resistant | 360 mm | Round | Motorized Impellers | 265 W | cURus TUV | 4 Wire Leads | 230 VAC | 1600 RPM | Ball |
