03JQ Series

Catalog

CONN RCPT 3POS 0.098 TIN PCB R/A

Part	Insulation Material	Contact Material	Contact Shape	Insulation Color	Current Rating (Amps)	Number of Rows	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height [custom]	Insulation Height [custom]	Mounting Type	Fastening Type	Material Flammability Rating	Contact Type	Termination	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]
JST Sales America Inc. 03JQ-ST	Nylon 6/6 Polyamide (PA66)	Phosphor Bronze	Square	Natural	3 A	1	All	2.5 mm	0.098 in	0.236 "	6 mm	Right Angle Through Hole	Friction Lock	UL94 V-0	Female Socket	Press-Fit Solder	Receptacle	250 V	85 °C	-25 °C

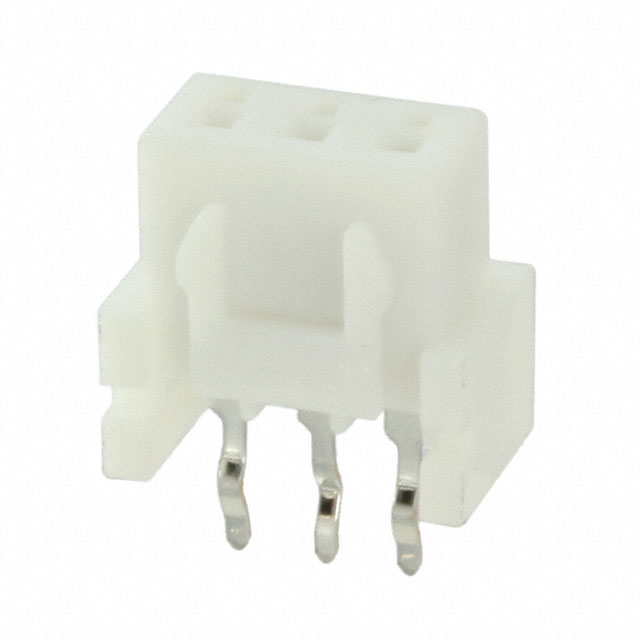

JST Sales America Inc. 03JQ-BT	Nylon 6/6 Polyamide (PA66)	Phosphor Bronze	Square	Natural	3 A	1	All	2.5 mm	0.098 in			Through Hole	Friction Lock	UL94 V-0	Female Socket	Press-Fit Solder	Receptacle	250 V	85 °C	-25 °C	11.8 mm	9.5 mm	0.374 in
