IPB024 Series
Manufacturer: INFINEON
Beta
⌘K

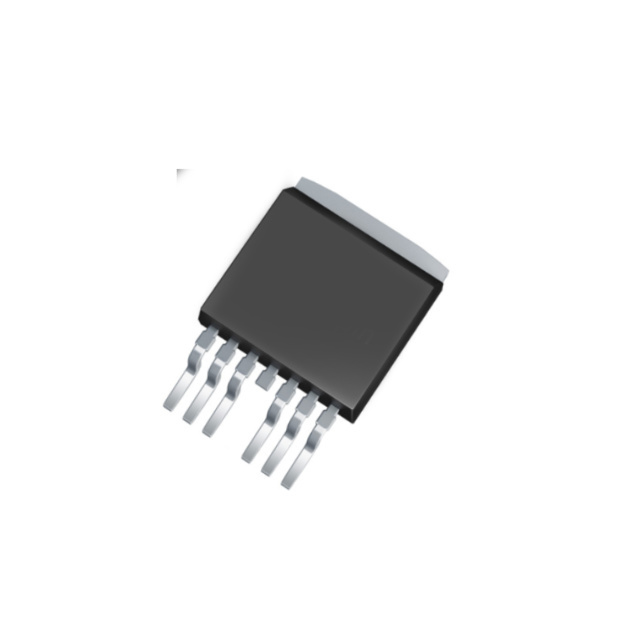

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 100 V ; D2PAK 7PIN TO-263 7PIN PACKAGE; 2.4 MOHM;
| Part | Drain to Source Voltage (Vdss) | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Package / Case | Mounting Type | Supplier Device Package | Vgs(th) (Max) @ Id | Input Capacitance (Ciss) (Max) @ Vds | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs | Power Dissipation (Max) | Vgs (Max) | Rds On (Max) @ Id, Vgs [Max] | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 100 V | 175 °C | -55 °C | MOSFET (Metal Oxide) | D2PAK (7 Leads + Tab) TO-263-8 TO-263CA | Surface Mount | PG-TO263-7 | 3.8 V | 10200 pF | 180 A | 6 V 10 V | 138 nC | 250 W | 20 V | 2.4 mOhm | N-Channel |
