FXPS71 Series

Catalog

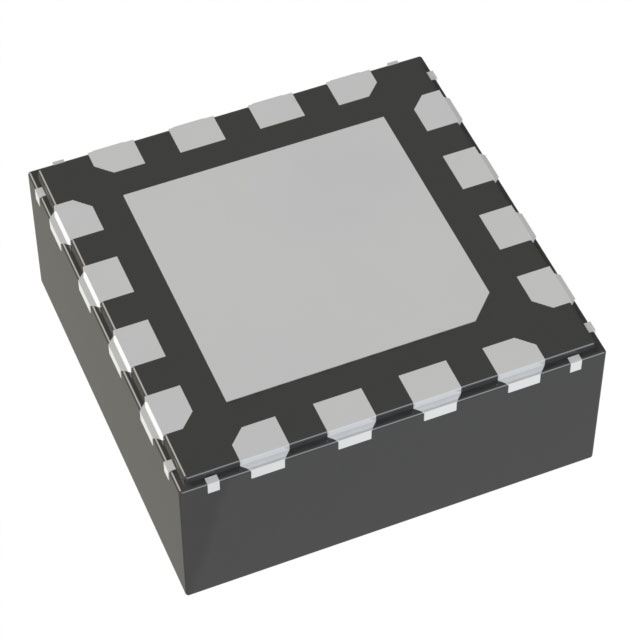

SENSOR 16.68PSIA 32BIT 16HQFN

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Supplier Device Package	Mounting Type	Output Type	Port Style	Output	Termination Style	Accuracy	Accuracy	Maximum Pressure	Maximum Pressure	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications
Freescale Semiconductor - NXP FXPS7115DI4T1	3.1 V	5.25 V	16-QFN Exposed Pad	16-HQFN (4x4)	Surface Mount Wettable Flank	I2C	No Port	32 b	SMD (SMT) Tab	1.75 kPa	0.25 PSI	150 kPa	21.76 PSI	5.8 PSI	16.68 PSI	40 kPa	115 kPa	-40 °C	130 °C
Freescale Semiconductor - NXP FXPS7115DS4T1	3.1 V	5.25 V	16-QFN Exposed Pad	16-HQFN (4x4)	Surface Mount Wettable Flank	SPI	No Port	32 b	SMD (SMT) Tab	1.75 kPa	0.25 PSI	150 kPa	21.76 PSI	5.8 PSI	16.68 PSI	40 kPa	115 kPa	-40 °C	130 °C
Freescale Semiconductor - NXP FXPS7165DI4T1	3.1 V	5.25 V	16-QFN Exposed Pad	16-HQFN (4x4)	Surface Mount Wettable Flank	I2C	No Port	32 b	SMD (SMT) Tab	3.5 kPa	0.51 PSI	300 kPa	43.51 PSI	8.7 PSI	23.93 PSI	0.6 bar	165 kPa	-40 °C	130 °C
Freescale Semiconductor - NXP FXPS7140P4T1																				Board Mount
Freescale Semiconductor - NXP FXPS7165DS4T1	3.1 V	5.25 V	16-QFN Exposed Pad	16-HQFN (4x4)	Surface Mount Wettable Flank	SPI	No Port	32 b	SMD (SMT) Tab	3.5 kPa	0.51 PSI	300 kPa	43.51 PSI	8.7 PSI	23.93 PSI	0.6 bar	165 kPa	-40 °C	130 °C
