EN3P18 Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 18 CONTACTS, PCB SOCKET, BAYONET

Part	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Material Flammability Rating	Color	Shielding	Number of Positions	Current Rating (Amps)	Ingress Protection	Applications	Insert Material	Voltage Rating	Contact Material	Connector Type	Orientation	Mounting Feature	Contact Finish - Mating	Fastening Type

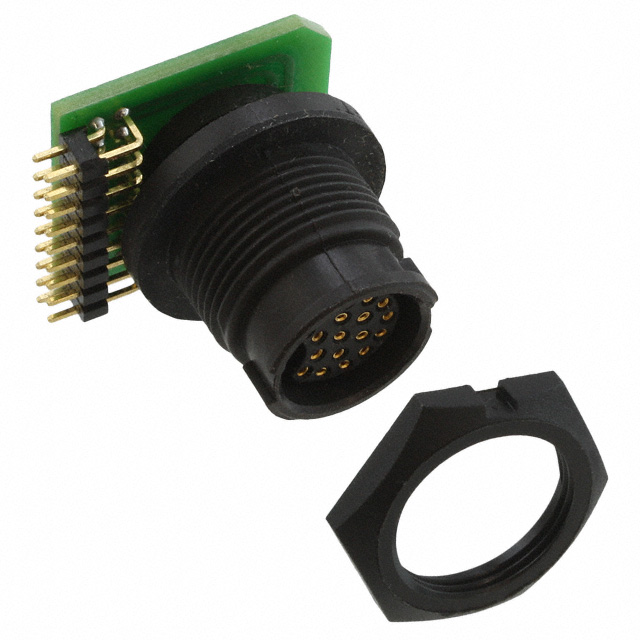

SWITCHCRAFT/CONXALL EN3P18FRAPCBN	Panel Mount Right Angle Through Hole	Circuit Board Solder	-40 C	65 °C	Plastic	UL94 V-0	Black	Unshielded	18	2 A	IP66 IP68	General Purpose Instrumentation Marine Medical	Elastomer	250 VAC	Copper Alloy	Receptacle Female Sockets	Keyed	Bulkhead - Front Side Nut	Gold	Bayonet Lock
SWITCHCRAFT/CONXALL EN3P18M26X	Panel Mount		-40 C	65 °C	Plastic	UL94 V-0	Black	Unshielded	18	3 A	IP66 IP68	General Purpose Instrumentation Marine Medical	Elastomer	250 VAC	Copper Alloy	Receptacle Male Pins	Keyed	Bulkhead - Front Side Nut	Gold	Bayonet Lock

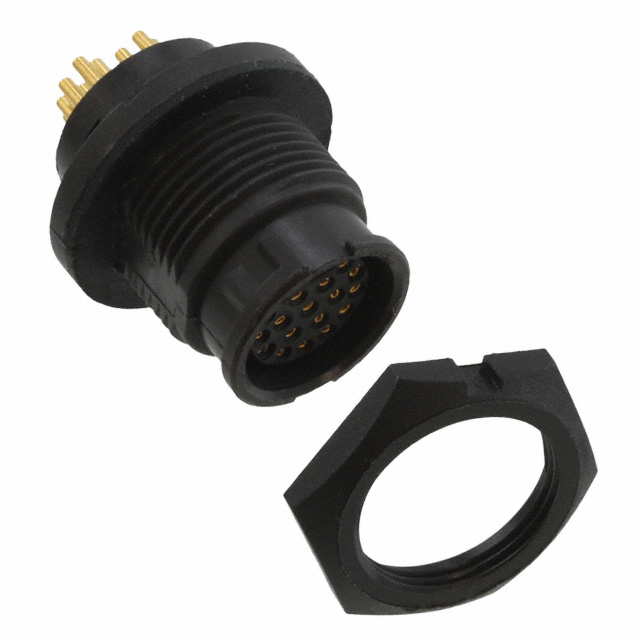

SWITCHCRAFT/CONXALL EN3P18F26X	Panel Mount		-40 C	65 °C	Plastic	UL94 V-0	Black	Unshielded	18	3 A	IP66 IP68	General Purpose Instrumentation Marine Medical	Elastomer	250 VAC	Copper Alloy	Receptacle Female Sockets	Keyed	Bulkhead - Front Side Nut	Gold	Bayonet Lock

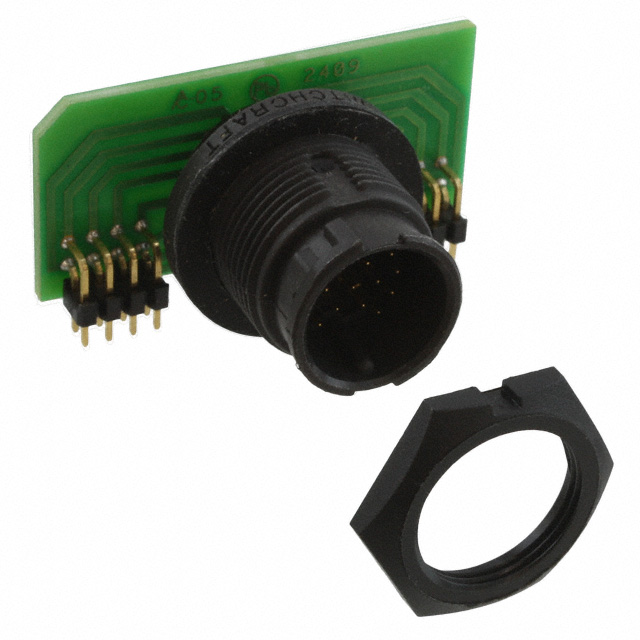

SWITCHCRAFT/CONXALL EN3P18MRAPCBW	Panel Mount Right Angle Through Hole	Circuit Board Solder	-40 C	65 °C	Plastic	UL94 V-0	Black	Unshielded	18	2 A	IP66 IP68	General Purpose Instrumentation Marine Medical	Elastomer	250 VAC	Copper Alloy	Receptacle Male Pins	Keyed	Bulkhead - Front Side Nut	Gold	Bayonet Lock
SWITCHCRAFT/CONXALL EN3P18F26SX	Panel Mount		-40 C	65 °C	Plastic	UL94 V-0	Black	Unshielded	18	3 A	IP66 IP68	General Purpose Instrumentation Marine Medical	Elastomer	250 VAC	Copper Alloy	Receptacle Female Sockets	Keyed	Bulkhead - Front Side Nut	Gold	Bayonet Lock
SWITCHCRAFT/CONXALL EN3P18FRAPCBW	Panel Mount Right Angle Through Hole	Circuit Board Solder	-40 C	65 °C	Plastic	UL94 V-0	Black	Unshielded	18	2 A	IP66 IP68	General Purpose Instrumentation Marine Medical	Elastomer	250 VAC	Copper Alloy	Receptacle Female Sockets	Keyed	Bulkhead - Front Side Nut	Gold	Bayonet Lock
